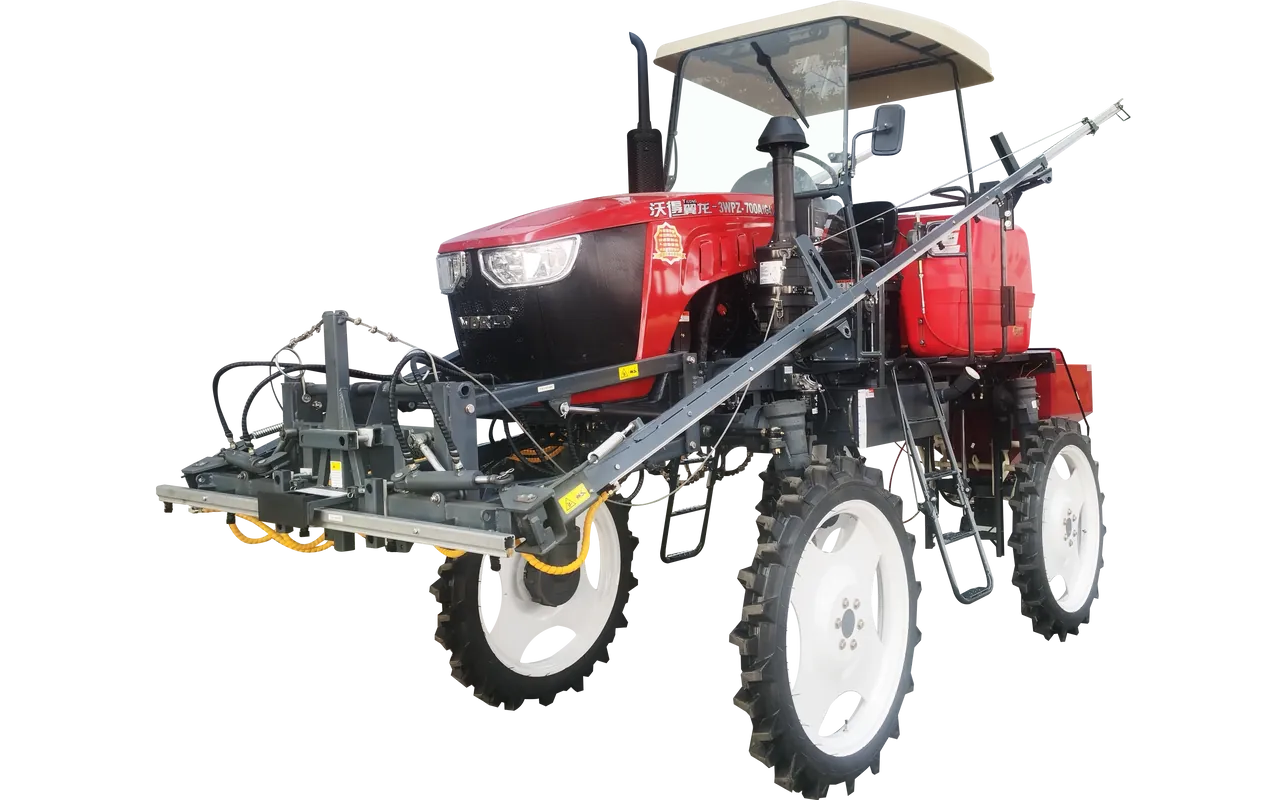

Characteristics:
Adopt three cylinders diesel engine for better performance in the muddy field.
Min clearance ground reaches 85cm, avoid hurt crop during working.
Adopt 4-wheel driven design, the same track avoid crops damage.
The max spray width reaches 11.5, work efficiency 2-3.5 hactares.
Imported spray nozzle for better insecticidal effect.
Parameters:
| Model | 3WPZ-500 |
| Sales identification number | PWJ-6 |
| Products name | Yi Long |
| Products type | self-propelled |
| Engine | Chang chai(20/22HP) |
| Working overall size(length*width*height)(mm) | 3615*9260*1977 |
| Transportation overall size (length*width height)(mm) | 3980*1770*2425 |
| Weight(kg) | 920 |
| Min clearance ground(mm) | 850 |
| Transmission mode | Main transmission +auxiliary gear |
| Driving type | 4-wheel driving |
| Starting type | hydraulic |
| Mud depth(mm) | 0-300 |
| Crop height(mm) | 0-900 |
| Row spacing(mm) | 300 |
| Spraying swatch(mm) | 11 |
| Tank capacity (L) | 500 |
