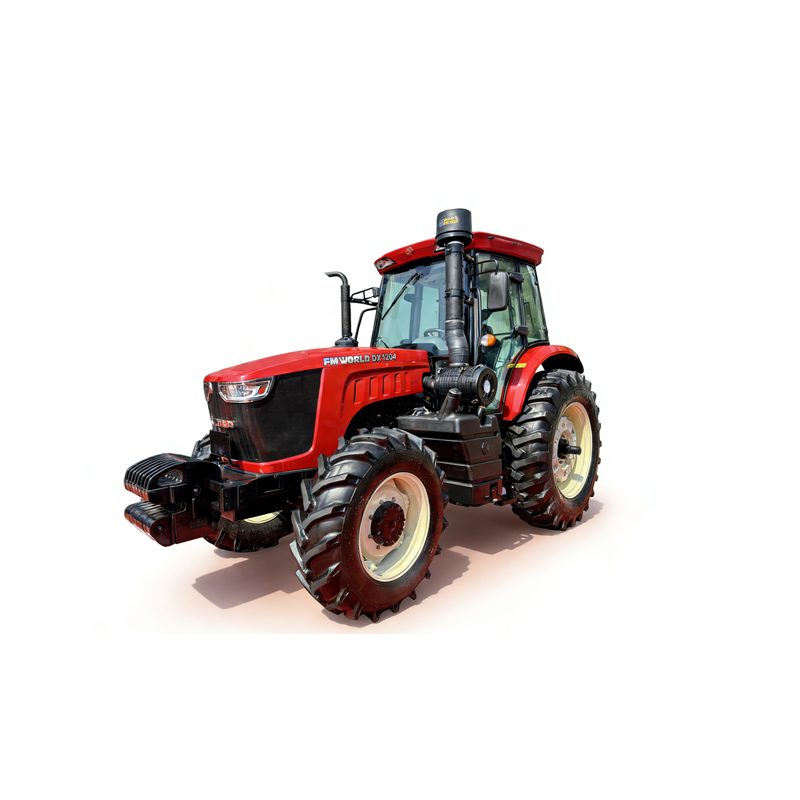

DX Series (DX1204)
FMWORLD
| Quantity: | |
|---|---|

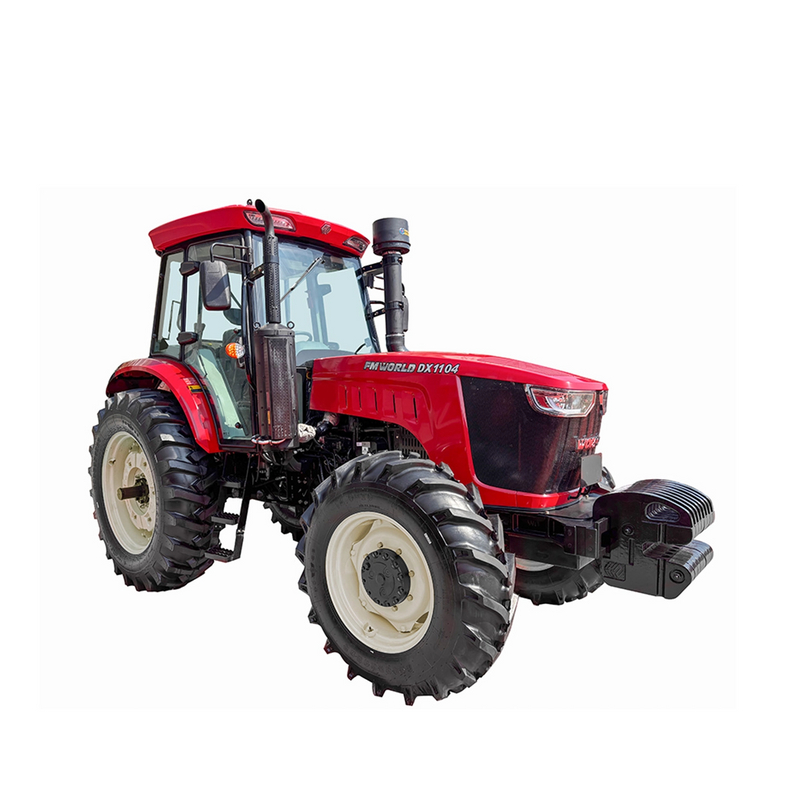

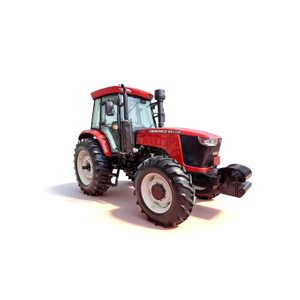

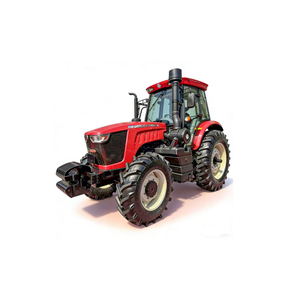

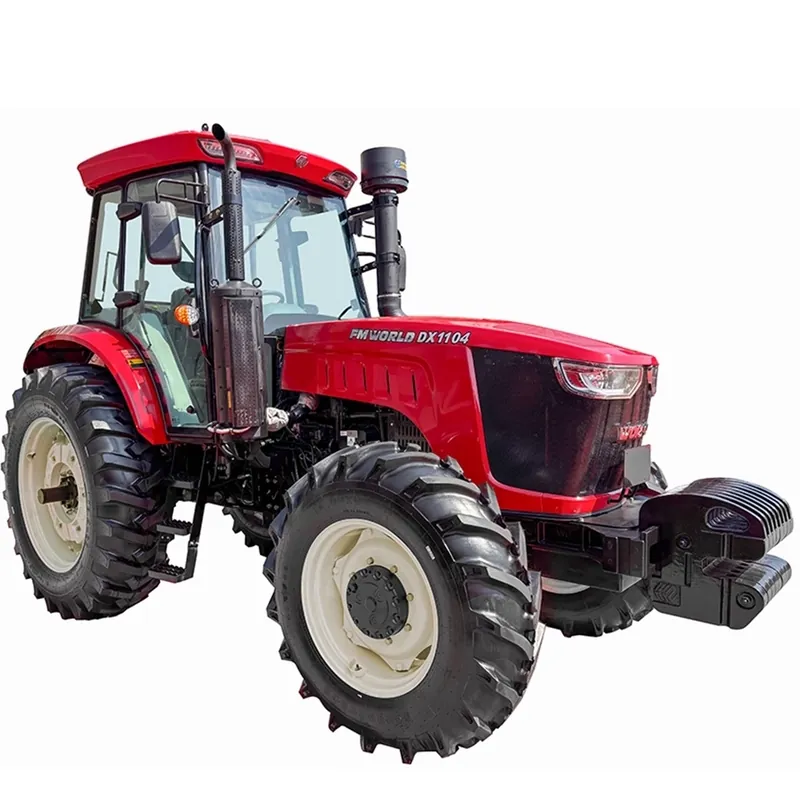

| Model | DX1104 | DX1204 | DX1404-6 | |
| Structure | 4*4 | |||
| Engine | Engine Power@speed（HP) | 110@2300 | 120@2300 | 140@2300 |
| Engine Type | 4Cylinders，lnline，Vertical，Water-cooled,diesel engine | 6Cylinders,lnline,Vertical,Water-cooled,diesel engine | ||
| Fuel Tank Capacity（L) | 200 | 200 | 370 | |
| Battery | 12v | |||
| Air Cleaner | Dry | |||
| Transmission | Gears | Shuttle 32F+32R with Creeper | ||
| Clucth | Power Shuttle,Dual Clutch,Independent | |||
| Brake | Mechanical disc | |||
| Differential Lock | Pin Type,Mechanical | |||
| PTO System | Direction of turning | Clockwise,viewed from tractor rear | ||
| Diameter of PTO Sharft(mm) | 35 | |||
| PTO Speeds(rpm) | 540/760/1000 | |||
| Hydraulic System | 3 Point Hitch | CategoryⅢ＆Ⅱ | ||
| Control System | Position, Draft,Float | |||
| Rear Auxiliary Remote Valves | 2 Groups | |||
| Lifting Capacity(kg) | ≥2912 ≥3086 ≥3706 | |||
| Other Parameters | Steering | Hydraulic Power Steering | ||
| Dimension(mm)@Canopy@Cabin | 4780/5100*2130/2820 | |||
| Ground Clearance(mm) | 400 | |||
| Tires(F/R) | 13.6-24/16.9-34 R-1,other size optional | |||
| Wheel Base(mm) | 2368.5 | 2768.5 | ||
| Ballast Weight Front/Rear(kg) | 320/180 | 400/180 | ||
| Min Operation Weight(kg) | 4320(canopy)/4520(cabin) | 4820(canopy)/5020(cabin) | ||
