Drying grains properly is essential for farmers to ensure the quality and longevity of their crops. A grain dryer uses a heat generator to produce hot air passed through the grain, causing the moisture to evaporate. This process helps to prevent spoilage and preserve the grain until it is ready to be used or sold. “Timely drying and safe warehousing” is the last critical link in the whole food production process, which can ensure food security and effectively improve food quality.
Grain dryers typically have several key components: a heat generator, an aeration system, a desiccant body where the grain is placed, and a control panel for managing the drying process. These elements create an efficient drying environment, ensuring the grain is dried evenly and thoroughly.
Understanding how to operate and maintain a grain dryer is crucial for any grain producer. Keeping the equipment clean and ensuring all parts function correctly saves time and reduces potential losses. Regular maintenance also helps improve the drying process's efficiency, leading to better overall results.
Grain drying is crucial for preserving the quality of harvested grains and preventing spoilage. This process involves several methods and principles that ensure grains are dried efficiently and effectively.
● Drying grains reduces moisture, preventing mold growth and spoilage.
● Moist grains can become a breeding ground for fungi and pests.
● Dry grains have a longer shelf life and maintain their nutritional value.
● Farmers can store dried grains for months without significant loss in quality.
● Essential for meeting market standards and reducing waste.
There are several types of grain dryers, each with its benefits.
● Low-temperature batch circulation dryers: These dryers use temperatures below 70 degrees Celsius (158 degrees Fahrenheit) and a slow drying process involving grain circulation and tempering. It’s ideal for wheat and rice, ensuring low grain breakage rates and preserving grain quality. The gentle drying process also helps to maintain the nutritional value of the grains.
● Continuous drying towers: These dryers employ temperatures between 100-140 degrees Celsius (212-284 degrees Fahrenheit) and offer rapid drying. They are suitable for wheat, rice, and corn, making them a versatile option for farmers who grow multiple crops. However, high temperatures can sometimes lead to a higher percentage of broken or damaged grains compared to low-temperature dryers.
FMWorld Grain Dryers
FMWorld offers a range of low-temperature batch circulation grain dryers, including the 5H-10, 5H-12, 5H-15, 5H-20, and 5H-30 models, as well as continuous drying towers like the 5H-100, 5H-500, and 5H-1000. These dryers are designed to cater to various needs and scales of grain production.
Principles of Operation
Grain dryers work by moving air through the grain to remove moisture. Moisture diffuses inside the grain, moving to the surface where it evaporates. Heat and airflow are key; hot air absorbs moisture from the grain, which exits through exhaust systems. Operators must balance temperature and airflow rates to avoid overheating or underdrying. This ensures even drying and high-quality grains.
A grain dryer consists of several critical components designed to manage the drying process efficiently. These include the heating unit, drying chamber, airflow system, and discharge mechanisms.
The heating unit generates the hot air required to dry the grain. It typically consists of a heat generator using fuel sources such as natural gas, propane, electricity, diesel, coal, biomass pellets, or wood. The heat generator must maintain consistent and controlled heat levels to protect the grain from damage. As too much heat can damage the grain, while too little can prolong the drying process. FMWorld dryers offer flexibility in heat source selection based on users' specific needs and available resources.
The drying chamber is where the grain is stored during the drying process. It is designed to hold a specific amount of grain and ensure an even heat distribution. The walls of the drying chamber are often insulated to maintain temperature. Inside, desiccant bodies help in moisture evaporation, ensuring thorough drying. The design allows uniform heat distribution to prevent hot spots that could cook the grain unevenly. Some dryers, like the FMWorld grain dryer, use a horizontal eight-slot design in the drying section for a thinner layer of grain, ensuring even drying and high quality.
An efficient airflow system is crucial in a grain dryer. It consists of fans and vents that circulate hot air through the grain. The airflow needs to be carefully controlled to avoid uneven drying. High-capacity fans push heated air through the grain, enhancing moisture removal. The system must be capable of adjusting airflow rates to match different grain types and moisture levels.
Discharge mechanisms remove the dried grain from the dryer. This process must be efficient to ensure that no grain remains too long inside the drying chamber, which could lead to over-drying or spoilage. These mechanisms often include conveyors or augers that transport the grain out of the dryer and into storage facilities. Proper discharge systems ensure continuous operation and efficiency of the drying process.
Operating a grain dryer involves several critical steps, including loading the grain, setting the correct temperatures, monitoring moisture levels during drying, and finally, unloading the dryer. Each step is essential to ensure the grain dries properly without being damaged.
To begin, the grain must be loaded into the dryer. This process usually involves using a conveyor belt or an auger to move the grain into the drying chamber. It's crucial to ensure that the grain is spread evenly. Uneven loading can lead to inconsistent drying, which can affect the quality of the grain. Ensure the chamber isn’t overloaded to prevent airflow issues, which is vital for effective drying.
Correct temperature settings are vital for the grain drying process. Different grains require different drying temperatures. Generally, the dryer has a control panel where temperatures can be set. For example, the lower burner is often set at a recommended temperature for half the drying time. Then, the upper burner is operated at a normal temperature for the remaining time. Adjusting temperatures properly helps prevent damage to the grain.
Monitoring moisture levels during drying is essential to ensure that the grain reaches the desired moisture content. This involves checking moisture readings regularly using moisture sensors or manual testing. Maintaining proper moisture levels prevents the grain from becoming too dry or staying too wet, which can lead to spoilage or reduced quality. Regular checks allow for adjustments to be made promptly. Some dryers, like the FMWORLD-5H15 Grain Dryer, use a moisture meter from Japan to ensure accuracy within 0.5%.
Once the grain reaches the correct moisture level, it is time to unload the dryer. This step reverses the loading process, usually using an auger or conveyor belt to move the dried grain to storage. Handling the dried grain carefully is important to avoid breakage and ensure it is stored in a dry place. Proper unloading techniques ensure the quality and longevity of the dried grain.
Regular upkeep and safety measures are crucial for proper grain dryer operation. This section covers routine tasks, common troubleshooting steps, and important safety tips.
Regular maintenance ensures efficient and long-lasting operation. Clean the dryer thoroughly before and after each season. Remove any dust and debris to prevent blockages. Also, inspect the heat generator, fan, and control panel. Look for signs of wear or damage and replace any faulty parts.
Check the fuel supply, ensuring there are no leaks. Lubricate moving parts as per the manufacturer's guidelines. Additionally, examine electrical connections. Secure any loose wires and test all safety switches. Proper maintenance can prevent unexpected breakdowns and extend the lifespan of the equipment.
Grain dryers may encounter several common problems. Check the power supply and safety switches if the dryer fails to start. A tripped breaker or blown fuse could be the culprit. For uneven drying, examine the airflow and heating system. Blockages or a faulty heat generator can cause this issue.
In the case of slow drying, inspect for clogs in the grain flow system. Clean the exhaust and intake vents. If the dryer overheats, ensure that the thermostat is working correctly. Replace it if necessary. Routine checks and prompt troubleshooting can keep the dryer running smoothly.
Safety is paramount when working with grain dryers. Always turn off and lock the main power switch before performing any maintenance. Wear proper safety gear, such as gloves, safety glasses, and respirators. These protect against dust and debris.
Keep the area around the dryer free from combustible materials. Regularly check for fuel leaks and repair them immediately. Never bypass safety switches, as they are designed to prevent accidents. Assign a fire watch during and after shutdown procedures to monitor for residual heat and potential fires. Following strict safety protocols helps prevent accidents and ensures a safe working environment.
Using grain dryers has environmental and economic implications. Grain dryers consume energy to reduce the moisture content of grains, which helps ensure safe storage and transport.
Energy consumption in grain dryers can vary widely. High-heat dryers dry grain faster but might consume more energy, leading to higher costs. On the other hand, low-heat systems can be more energy-efficient but require longer drying times.
The choice of energy source also matters. Electric grain dryers typically have a lower carbon footprint than fossil fuels. Advances in dryer technology, such as flue gas dedusting and NOx conversion, can help reduce harmful emissions.
The economic impact of grain dryers includes both initial investment costs and operational costs. While modern grain dryers might involve a higher upfront cost, they can lead to long-term savings through better energy efficiency and reduced grain damage. Additionally, factors such as fuel prices, dryer efficiency, and the type of grain being dried can influence the overall cost-effectiveness of a grain dryer.
To summarize the key points:
Factor | Impact |
Energy Consumption | High energy use increases operational costs. |
Emissions | Electric dryers generally produce fewer emissions than fossil fuel dryers. |
Drying Speed | Faster drying can save time but may use more energy. |
Maintenance | Regular maintenance can improve efficiency and lower costs. |
Initial Investment | Higher initial costs for advanced systems can lead to long-term savings and better environmental outcomes. |
FMWorld provides various dryer installation layouts, including one-to-two, one-to-three, one-to-four, and one-to-six configurations, catering to different user needs and spatial conditions.
● One-to-Two Configuration: A single heat source paired with two dryers, suitable for smaller-scale operations or when space is limited.
● One-to-Three Configuration: One heat source connected to three dryers, offering increased drying capacity for medium-sized farms or facilities.
● One-to-Four Configuration: This setup provides even greater drying power, making it suitable for larger operations or those with high-volume grain processing needs.

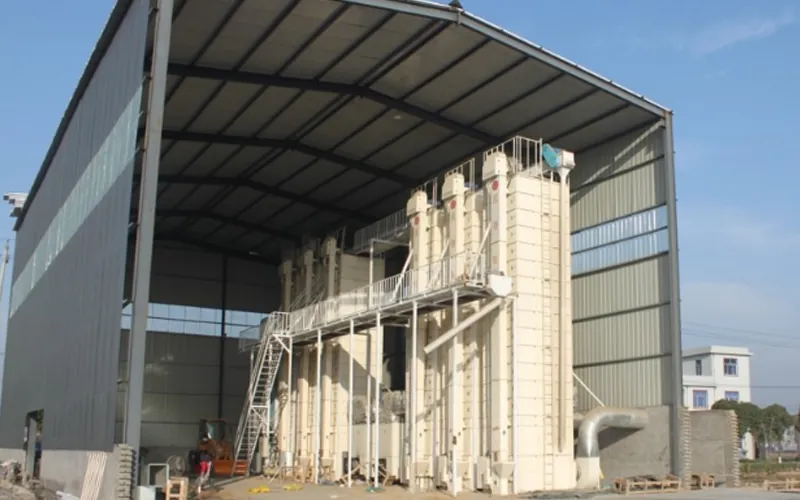

● One-to-Six Configuration: The most extensive configuration, ideal for large-scale agricultural businesses or industrial grain processing facilities.
Based on the specific requirements of the drying site, FMWorld can customize the layout and design to ensure optimal performance and efficiency. The installation process typically takes 3-4 days, and FMWorld provides comprehensive support and guidance throughout the process.
By seamlessly integrating dryers into diverse settings and overcoming the challenges posed by tough terrains, FMWorld has shown its ability to deliver drying solutions that are both customized and effective. This commitment to adaptability is a testament to FMWorld’s mission to enhance food security and quality through personalized drying technologies.
The operation begins with loading the grain into the dryer. The grain then moves to a heat chamber where hot air is circulated. After heating, the grain passes through an aeration system, cooling it down before storage.
Grain dryers include a heat generator, a desiccant body, and a control panel. The heat generator produces hot air, the desiccant body contains the grains, and the control panel manages the drying process, including safety features.
Corn is loaded into the grain dryer. Hot air circulates to remove moisture. The corn then cools down through an aeration system. Finally, it is moved to a storage bin where it can be kept at the optimal moisture level.
Stirring systems and continuous-flow dryers are commonly used. Stirring systems mix the grain while drying. Continuous flow dryers push hot air through continuously flowing grain. Both systems ensure even drying and moisture removal.
Energy costs can be high due to the need for heat generation. Initial equipment costs are also significant. Additionally, improper use can lead to uneven drying and potential grain damage.
Cost-effectiveness depends on fuel prices, dryer efficiency, and the type of grain dried. Optimal use reduces overall costs. Efficient dryers and proper maintenance can significantly lower operating expenses. Factors like climate and grain type also influence costs.
