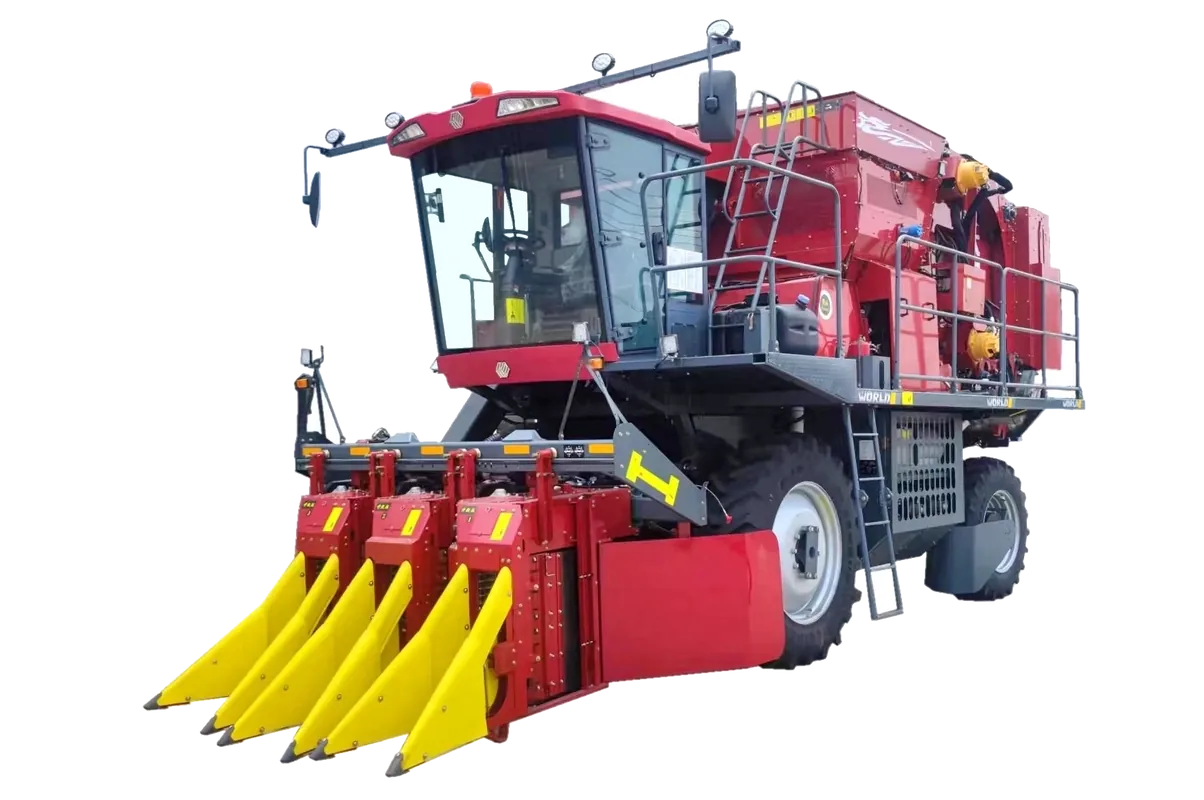

This is the latest cotton picker made by FMWORLD Agricultural Machinery. 3 Rows with adjustable row space, fit most of needs for global cotton farmers.
4MZD-3
FMWORLD
| Quantity: | |
|---|---|
Specification
No | Description | Specifications |
1 | Mode | 4MZD-3 |
2 | Structure type | Self-propelled |
3 | Brake Type | Disc Brake |
4 | Supporting power model specifications | YCK11380-T401 |
5 | Supporting power type | Vertical, in-line, water-cooled, four-stroke |
6 | Supporting power rated power (kW) | 279 |
7 | Supporting power rated speed (r/min) | 1900 |
8 | Pure working hour productivity (h㎡) | 1.0 |
9 | Overall dimensions in working condition (L×W×H) (mm) | 9300X3800X4300 |
10 | Dimensions in transportation state (L×W×H) (mm) | 10590X3800X3950 |
11 | Overall weight (kg) | 18000 |
12 | Bridge type | Ordinary |
13 | Number of rows of cotton harvester (rows) | 3 |
14 | Cotton picking head structure type | Horizontal drum |
15 | Number of cotton picking drums (pcs) | 2 for each cotton picking head |
16 | Number of spindle pick-up tubes on each drum (pcs) | 16（front roller） /12（rear roller） |
17 | The number of picking spindles on each picking seat tube (pcs) | 20 |
18 | The number of spindles picked on each cotton picking head (pcs) | 560 |
19 | Number of doffer trays (pcs) | 40 for each cotton picking head |
20 | Fan model | Centrifugal fan |
21 | flow rate of fan( m³) | 9500 |
22 | Wind pressure (total pressure)(Pa) | 8643 |
23 | Fan speed (r/min) | 4330 |
24 | Adapt to picking row spacing (mm) | 762 |
25 | Minimum boll height for picking (mm) | 180 |
26 | Number of cotton box compaction augers (pcs) | 1 |
27 | Maximum volume of cotton storage basket (㎡) | 6.3 |
28 | Unloading method | Horizontal scrolling |
29 | Front wheel specifications | 460/85R38 |
30 | Rear wheel specifications | 420/85R30 |
31 | Front wheel track (mm) | 2286 |
32 | Rear wheel track (mm) | 2252 |
33 | Wheelbase (mm) | 3860 |
34 | Width of compression chamber of packing device(mm) | 2340 |
