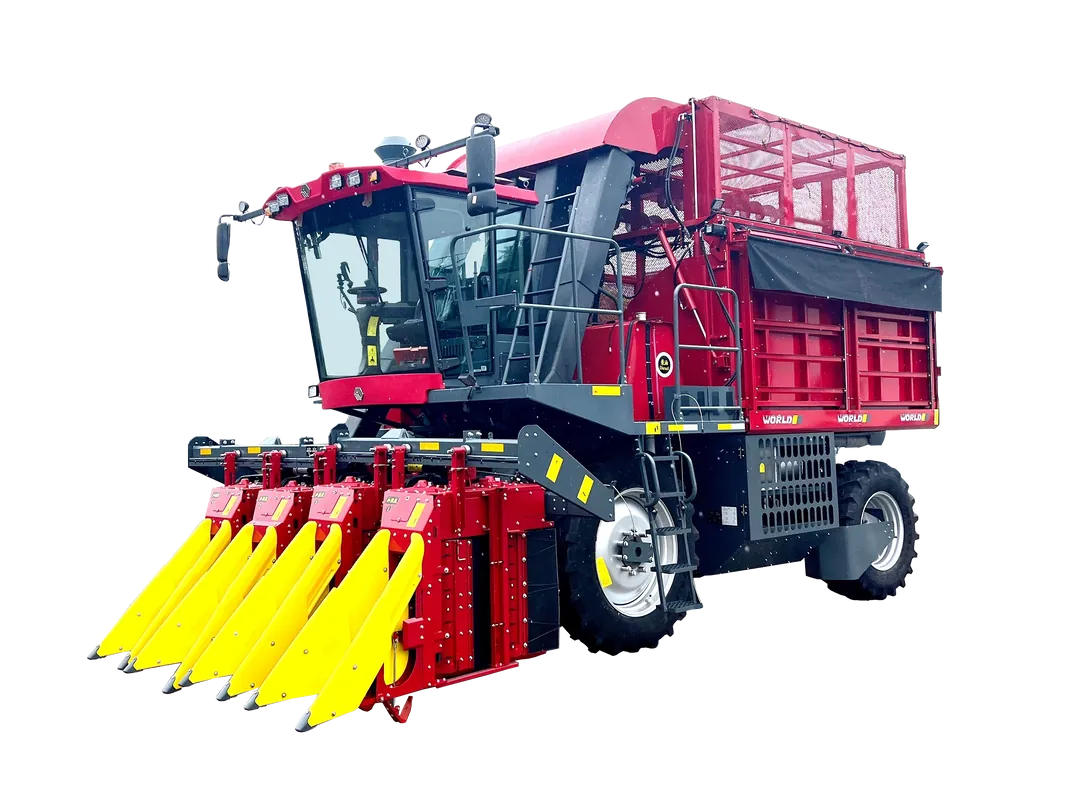

4MZ-4
FMWORLD
| Quantity: | |
|---|---|
| Picking Head |
| 4 independent picking heads.16&12 rows of seat tube structure |
| CABIN PART |
| More comfortable cockpit allows you to work all day without getting tired. |
| CHASSIS PART |
| Integral chassis frame,the main body adopts large cross-section and high-strength profiles,with large bearing capacity. |
| Hydraulic system |
| Hydraulic system is equipped with hydraulic pumps and motors.High-quality electro-hydraulic control valve block layout |
| Cutton Box |
| Side tilt lifting chain rake to unload cotton |
| COROLLA REAR AXLE |
| Equipped with enhanced self-made rear axle |
| OTHER ITEMS |
| Self-made reinforced gearbox,with power shift fuction.Equipped with high-power fans |
| Model | / | 4MZD-4 self-propelled cotton harvester | |
| overall machine | Structure type | / | self-propelled |
| Dimensions in working state (length x width x height) |  mm | 8760×4460×4920 | |
| Overall dimensions in transportation state (length x width x height) | mm | 8760×3600×4200 | |
| Overall machine quality | kg | 20000 | |
| Cab type | / | normal type | |
| Brake of system | Brake type | / | disc type |
| engine | Supporting power rating | kW | 265 |
| Supporting power rated speed | r/min | 2000 | |
| Pure working hour productivity | hm² | 1-1.2 | |
| Picking Head Part | Number of job lines | 行 | 4 |
| Cotton picking head structure type | / | Horizontal spindle picking type | |
| Quantity of mining head rollers | / | 4×2 | |
| Number of spindle picker tubes per drum | 个 | 16 (front roller)/12 (rear roller) | |
| Number of spindles on each spindle picker tube | 个 | 20 | |
| Number of spindles per picking head | 个 | 560 | |
| Number of doffing discs | 个 | 4×40 | |
| Adapt to work spacing | mm | 760/900 | |
| Minimum boll height for picking | mm | 180 | |
| Fan system | Fan type | / | centrifugal |
| Fan flow | m³/h | 9500 | |
| Wind pressure (full pressure) | Pa | 8643 | |
| Fan speed | r/min | 4160 | |
| Cutton Box | Cotton box compaction auger quantity | 个 | 2 |
| Maximum volume of cotton storage box | 27 | ||
| Cotton unloading method | / | Side tilt lifting chain rake to unload cotton | |
| Tyre | Front wheel specifications | / | 520/70R38 |
| Rear wheel specifications | / | 480/70R30 | |
| Front wheel track | mm | 2286 | |
| Rear wheel track | mm | 2245 | |
| Wheelbase | mm | 3940 |
