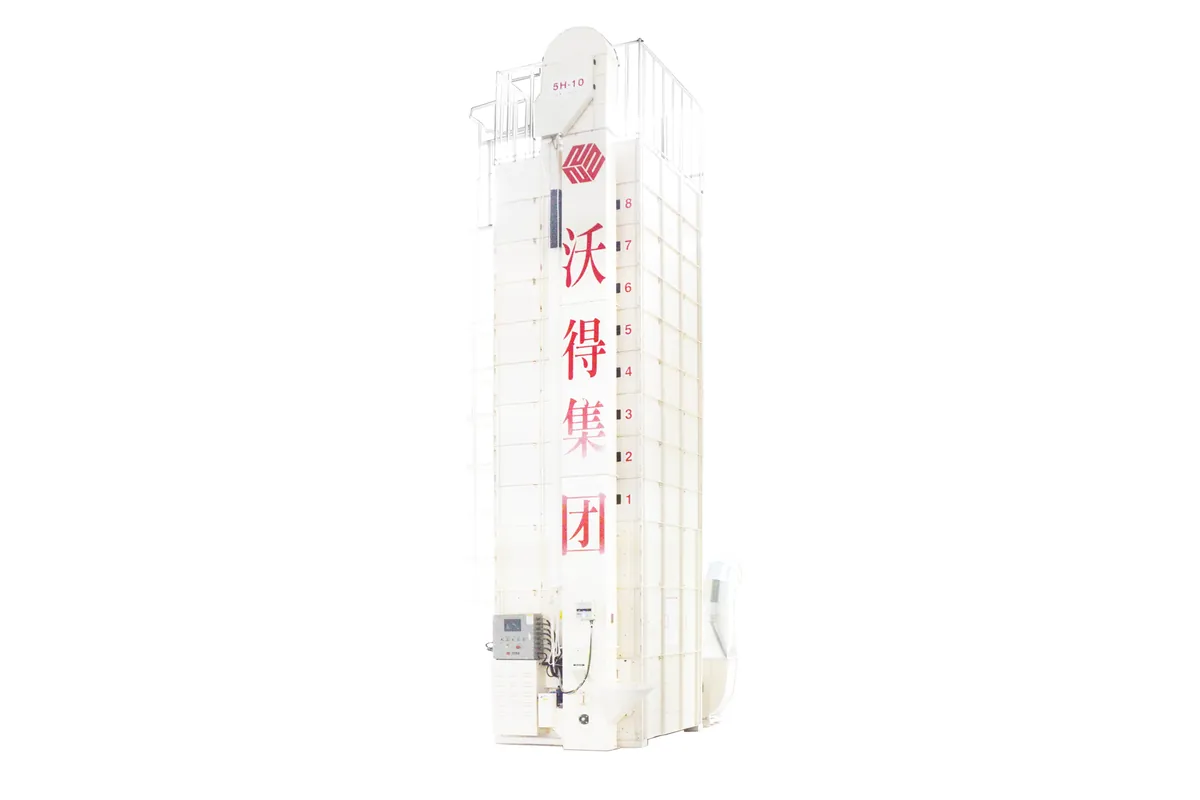

FMWORLD Grain Dryer - 5H15

FMWORLD 5H series grian dryers are made in high hardness and wear resistance materials. Key parts of these machines are imported from German and new control panel can detect all information and index in one screen. More choice of power sources from fuel to biomass make our dryer more clean and low-cost. 5H series is also a multi-functional dryer could be used in wheat, rice, corn and other millets.
  • 5H-15

  • Grain Dryer

Availability:
Quantity:


Characteristics:

  • Aplly for rice, wheat, corn, and soybean.

  • Safety, reliable, and easy cleaning

  • Use full automatic moisture detector for preventing over drying.

  • Multifarious fuel cover diesel, natural gas, chaff, steam, coal, firewood.


Parameters:

Model5H-105H-125H-155H-205H-30
Grain tank capacity (m³)////35.7
Weight22002300274938504300
Loading
capac
Grain(kg)(capacity=560kg/m³)5000-100005000-120005000-150005000-200005000-30000
Wheat(kg)(capacity=680kg/m³)5000-100005000-120005000-150005000-200005000-30000
Overall DimensionLxWxH (mm)3454×2026×84212700×3620×9620
3454×2026×10421
4270×4160×8360
4270×4160×10360
Case sizeLxWxH (mm)///3980×2000x×61303980×2000×8130
Centrifugal
blower
Model305EWHG120-1-8-9305E305E305E
Rated wind (m³/h)6677~133536677~1335310478~1942810478~194288288~16576

Furnace
Model                          Indirect heating
lgnition type                     Manual work
Fuel consumption(rice husk)17~2323~3535~4550~70(firewood)
50~70(firewood)
Fuel
Biomass、 firewood、 anthracite

ElectricVoltage/rate          Ⅲphase 380V Ⅰ phase220V/50hz
Total power15.736.527.5315.0719.07


Performance
Intake
time
Rice(min)40~6040~6040~6040~6040~60
Wheat(min)40~6040~6040~6040~6040~60
Outtake
time
Rice(min)40~6040~6040~6040~6040~60
Wheat(min)40~6040~6040~6040~6040~60
Treatment capacity(kg/h)≧600≧800≧750≧10001200
Drying capacity(kg%/h)≧7000≧8000≧8500≧10000≧16000
Model0.5~1.00.5~1.00.5~1.00.5~1.00.5~1.0
NoteSafety deviceFull warning、 thermal relay、 temperature test device、 hotwind
temperature sensor, overload protection device, leakage protection
Moisture test、 grain temperature sensor、fault warning、 full warning、 over temperature sensor、 thermal relay、 hotwind temperature sensor, overload protection device leakage protection
Standard deviceMoisture test, grain temperature sensor、 unloading fault sensorConveyor system、 grain outlet system、 drying syetem、slow、hoist、downdraught fan、auto control system
