FMWORLD Ruilong Combine Harvester 4LZ-6.0P(WD110PRO).Combine harvester 4LZ-6.0P is functional grain combine harvester, which not only harvests rice, but also harvests wheat, soybeans, corn, etc.Combine harvester 4LZ-6.0P is equipped with Turbocharged diesel engine Yuchai 4DK(110HP) , enlarged Hydraulic Steering Gearbox and 45cc HST, with advantages of strong power and easy operation, which ensures smooth work in the fields.
Minimum ground clearance 36cm and widening rubber track tracks by 550 * 90 * 56 greatly improve the passing ability of the machine in paddy fields.The standard cutting width is 2.36 meters, and the normal operating efficiency is 0.4-0.8 hectares per hour.The loss rate, crushing rate, and impurity content of harvested grains are both extremely low.

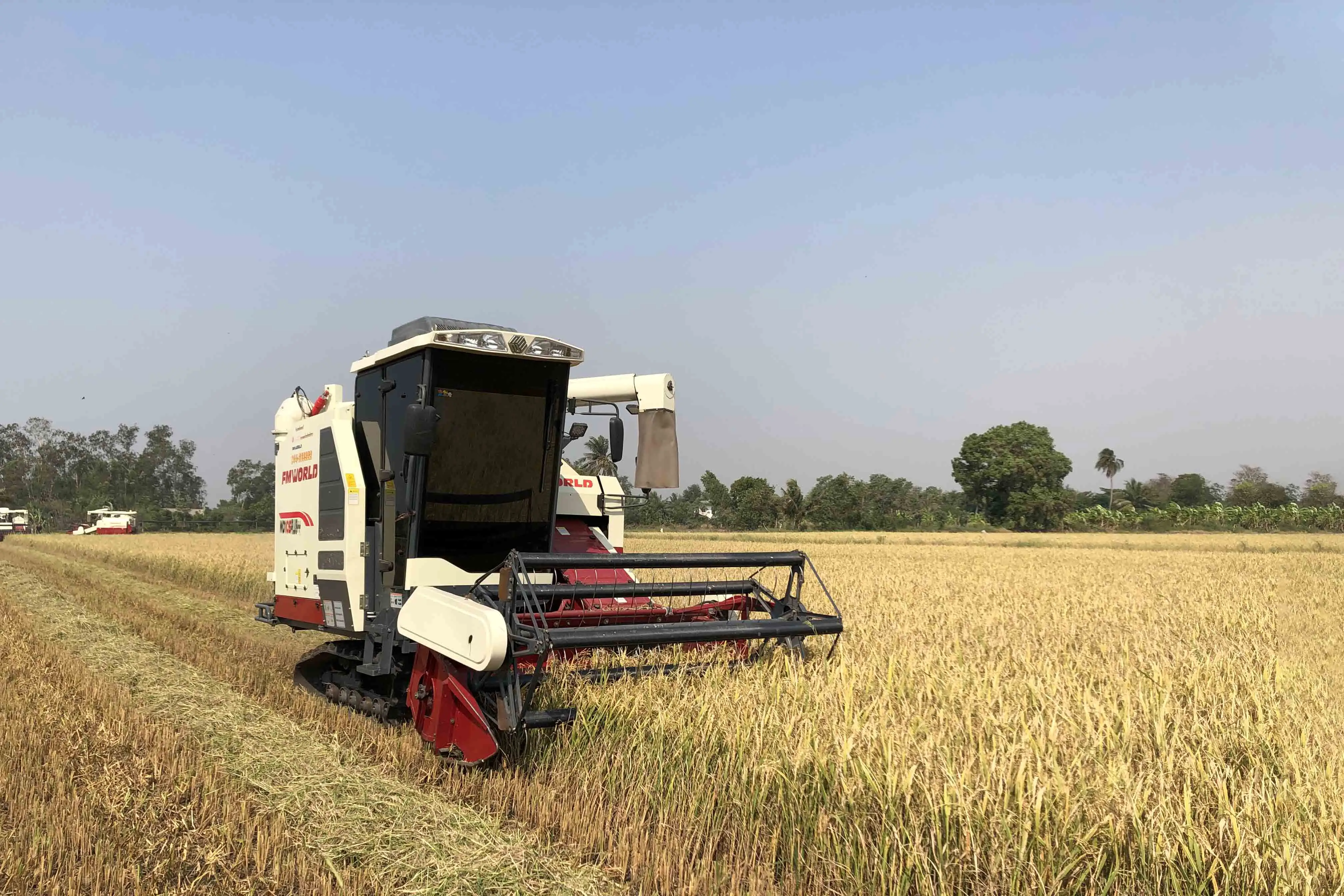

Ruilong Plus 4LZ-6.0P (Cabin)
FMWORLD
| Quantity: | |
|---|---|
Specification
| Model | Ruilong Plus -4LZ6.0P (WD110PRO) | |||
| Type | Self-propelled Whole-feeding | |||
| Dimension (Operation) | Length（mm） | 5150 | ||
| Width（mm） | 2620 | |||
| Height（mm） | 3030 | |||
| Weight（kg） | 3800 | |||
| Engine | Power（HP） | 110 | ||
| RPM（r/min） | 2600 | |||
| Fuel Capacity（L） | 160 | |||
| Gearbox | Hydraulic Gearbox Box ZKB85 | |||
| HST | 45cc | |||
| Chassis | Track(mm) | 550*90*56 | ||
| Track Center(mm) | 1350 | |||
| Ground Clearance(mm) | 360 | |||
| Harvesting | Cutting Width(mm) | 2360 | ||
| Feeding Capacity (kg/s) | 6.0 | |||
| Cutting Bar Lift | Hydraulic Control | |||
| Threshing | Type | Axial Flow Type with Beat Bars | ||
| Threshing Cylinder (mm) | 620*2010 | |||
| Filtrate Type | Vibrating Sieves+ Centrifugal Fan | |||
| Discharging | Grain Tank Capacity(m³) | 1.77 | ||
| Grain Discharge Type | All Direction Discharging Pipe | |||
| Work efficiency(ha./h) | 0.4-0.8 | |||
| Crops | Rice, Wheat, Rape,Soybean,Corn | |||
