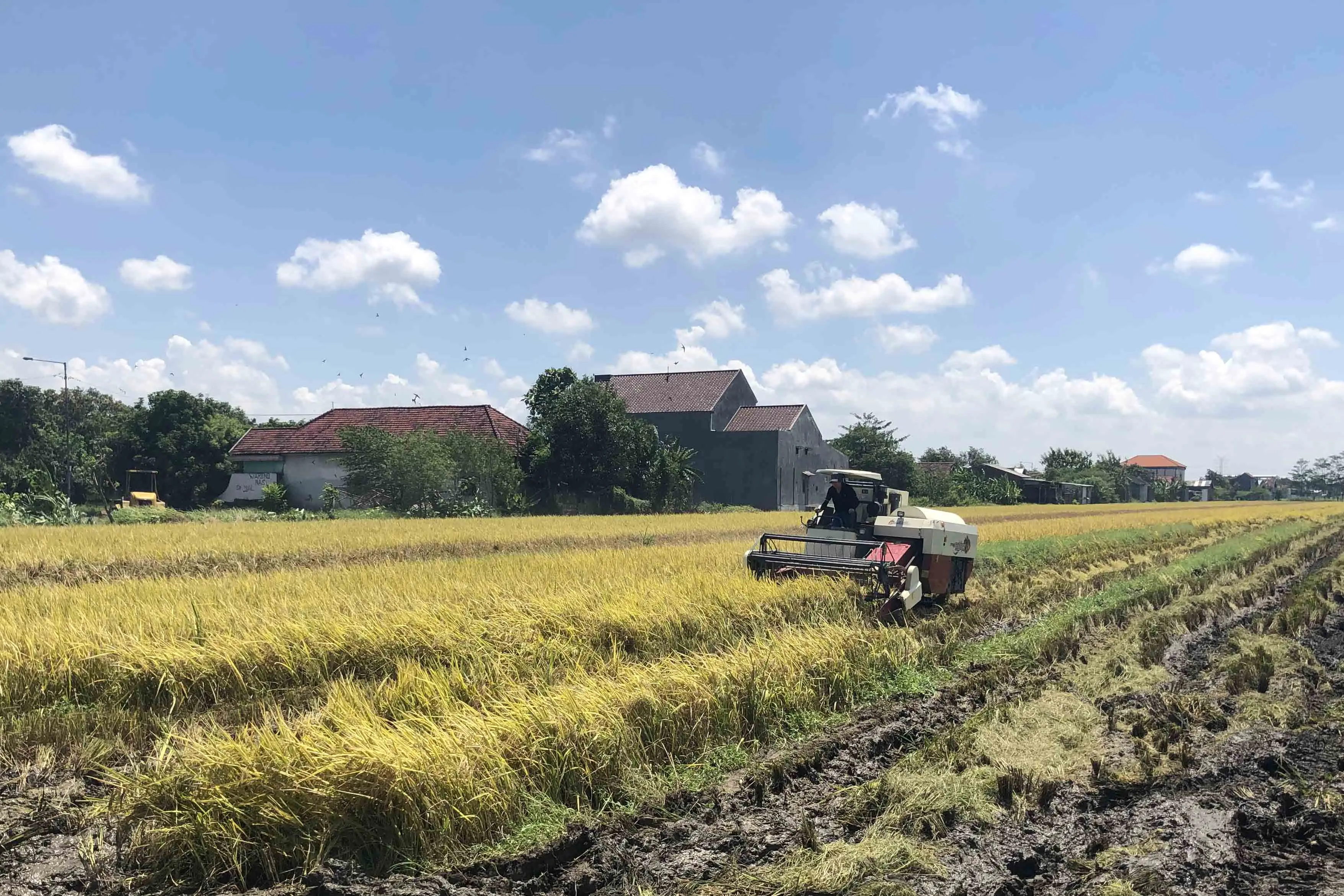

Ruilong Plus 4LZ-6.0P (Sack Type)
FMWORLD
Availability: | |
---|---|
Quantity: | |
Specification
Model | 4LZ-6.0P(Sack Type) | |||
Type | Self-propelled Whole-feeding | |||
Dimension (Operation) | Length(mm) | 4960 | ||
Width(mm) | 2890 | |||
Height(mm) | 2700 | |||
Weight(kg) | 3100 | |||
Engine | Model | Changchai 4L88 | ||
Power(HP) | 102 | |||
RPM(r/min) | 2600 | |||
Fuel Capacity(L) | 130 | |||
Gearbox | Hydraulic Gearbox Box ZKB85 | |||
HST | 45cc | |||
Chassis | Track(mm) | 550*90*56 | ||
Track Center(mm) | 1150 | |||
Ground Clearance(mm) | 320 | |||
Harvesting | Cutting Width(mm) | 2000 | ||
Feeding Capacity (kg/s) | 6.0 | |||
Cutting Bar Lift | Hydraulic Control | |||
Threshing | Type | Axial Flow Type with Beat Bars | ||
Threshing Cylinder (mm) | 620*2000 | |||
Filtrate Type | Vibrating Sieves+ Centrifugal Fan | |||
Unloading | Grain Tank Type | Manual type | ||
Grain Tank | 0.3m³ | |||
Work efficiency(acre/h) | 0.37-0.66 | |||
Crops | Rice, Wheat, Rapeseed, Soybean |
