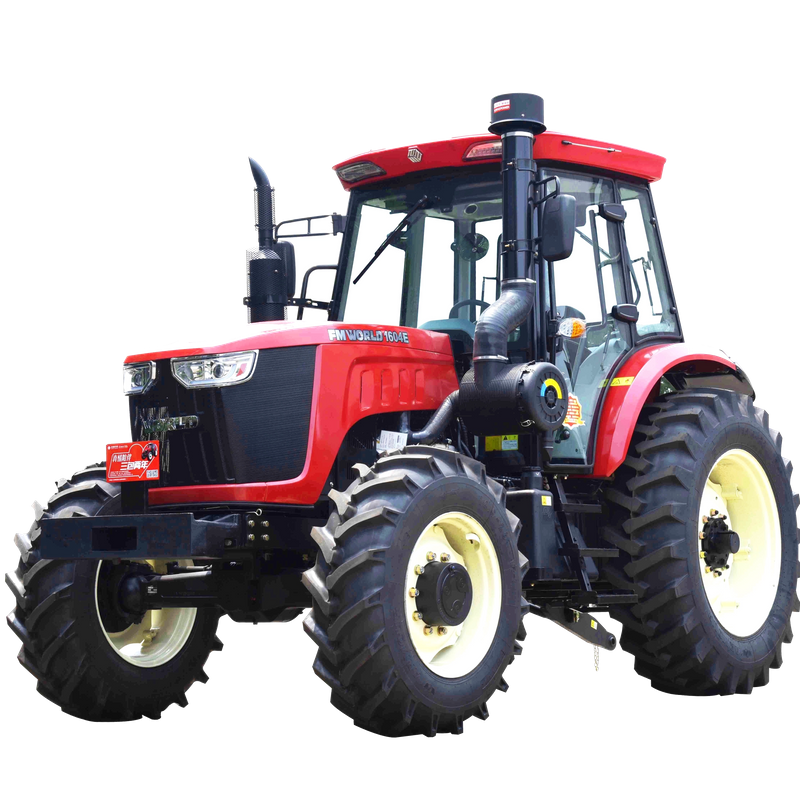

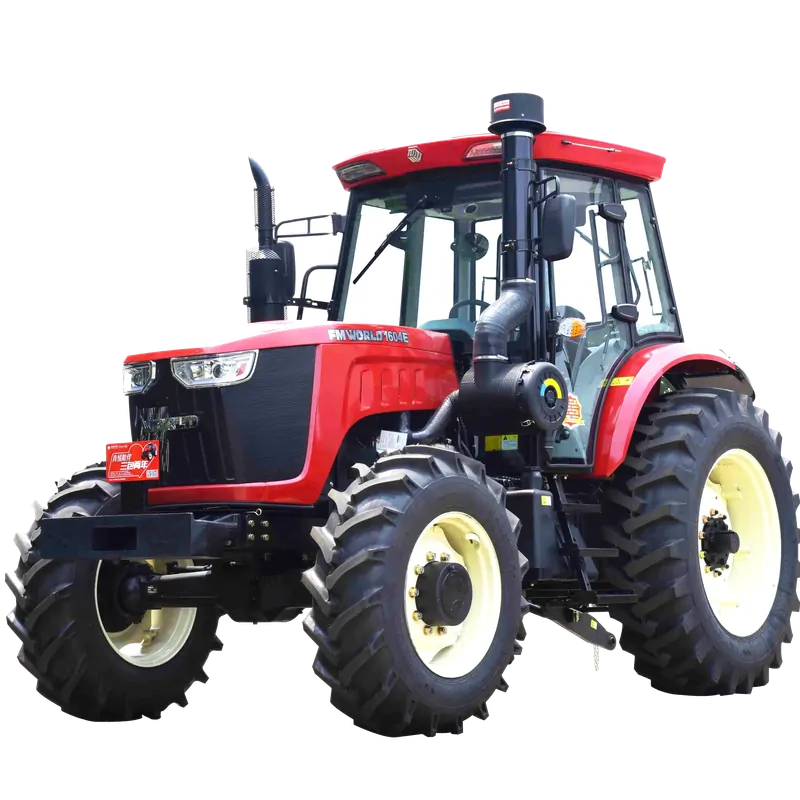

FMWORLD Tractor - 1604E

FMWORLD E Series tractor is the middle size series in FMWORLD product range which covers power range from 160hp to 180hp. This 1604E is suitable to middle and big size farmland as the power is strong. 160hp Yuchai high performance engine with BOSCH TDCI technology makes it excellent working performance but low fuel consumption. Transmission is equipped 24F+8R shuttle and creeper gear is standard. Steering cylinder is strengthened, now it is more durable and the turing radius is reduced. Cabin is upgraded in dust, water and noise proof. Driver can be more comfortable in long-time working with our tractor.
  • E Series (1604E)

  • FMWORLD

Availability:
Quantity:
ModleFMWORLD 1604E
Structure4*4
EngineEngine Power@speed(HP)160@2300
Engine Type6 Cylinder, Inline, Vertical, Water-cooled, diesel engine
Fuel Tank Capacity(L)300
Battery12V
Air CleanerDry
TransmissionGears24F + 8R with Creeper
ClutchDual Clutch, Independent
BrakeMechanical disc
Differential LockPin Type, Mechanical
PTO SystemDirection of turningClockwise,viewed from tractor rear
Diameter of PTO Shaft(mm)48
PTO Speeds(rpm)760/850
Hydraulic systemTypeCategory Ⅲ & 3 point hitch
Control SystemPosition ,draft
Lifting Capacity(KG)≧4235
Other ParametersSteeringHydraulic Power Steering
Dimension(mm)@Cabin5220*2300*2940
Gorund Clearance(mm)470
Tires(F/R)14.9-26/18.4-38 R-1, other size optional
Wheel Base (mm)2720
Ballast Weight Front/Rear(kg)600/540
Min Operation Weight(kg)5660
