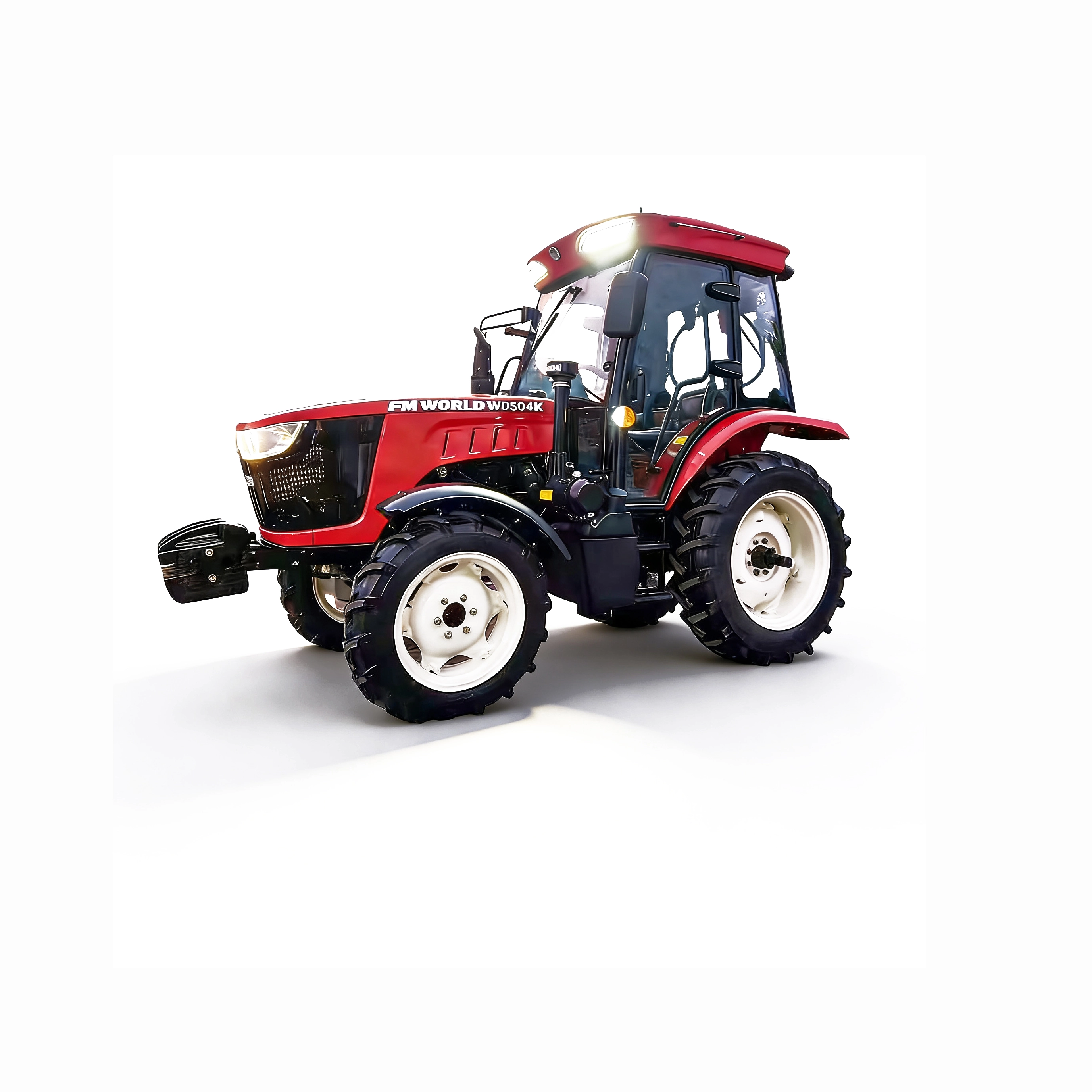

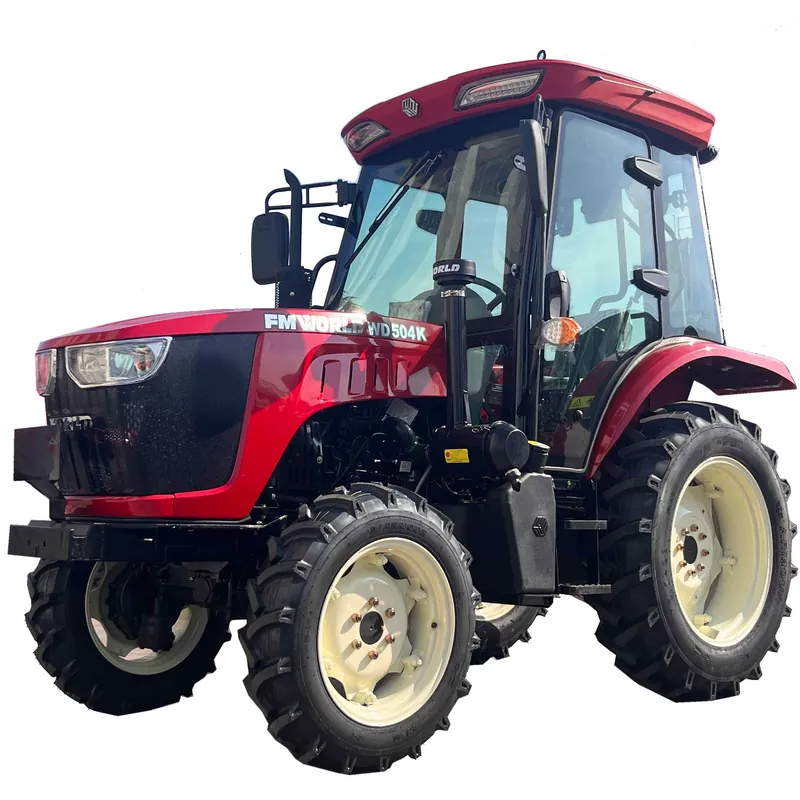

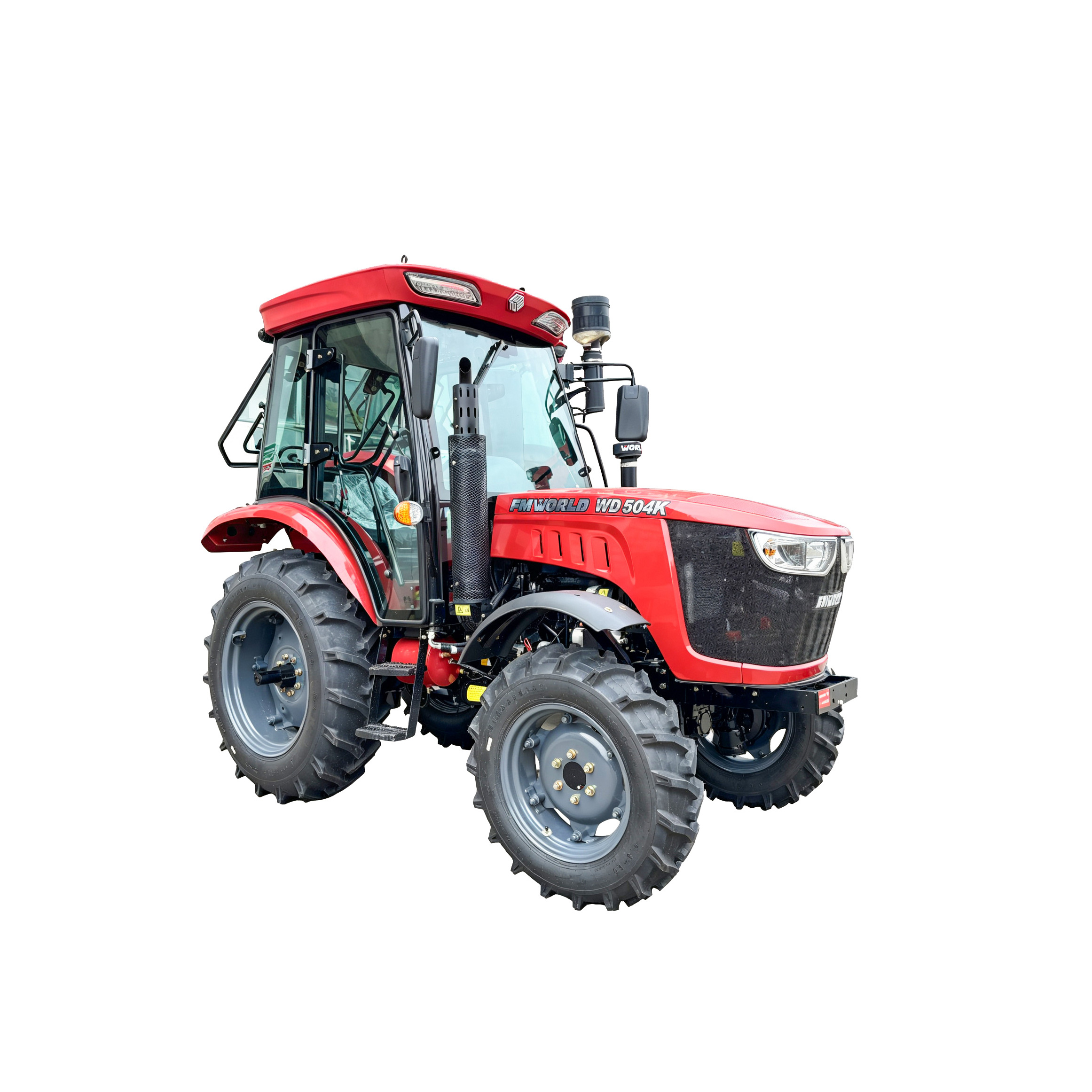

K Series (504K Cabin)
FMWORLD
| Quantity: | |
|---|---|
| Modle | WD504K | |
| Structure | 4*4 | |
| Engine | Engine Power@speed（HP） | 50@2400 |
| Engine Type | 4 Cylinders, Inline, Vertical, Water-cooled, diesel engine | |
| Fuel Tank Capacity(L) | 70 | |
| Battery | 12V | |
| Air Cleaner | Dry | |
| Transmission | Gears | Shuttle 8F + 8R |
| Clutch | Dual Clutch | |
| Brake | Mechanical disc | |
| Differential Lock | Pin Type, Mechanical | |
| PTO System | Direction of turning | Clockwise,viewed from tractor rear |
| Diameter of PTO Shaft(mm) | 35 | |
| PTO Speeds（rpm） | 540/760 | |
| Hydraulic system | 3 Point Hitch | Category I & II |
| Control System | Position ,draft | |
| Lifting Capacity(KG) | ≧1324 | |
| Other Parameters | Dimension(mm) Canopy | 3650*1572*2650 |
| Gorund Clearance(mm) | 440 | |
| Tires（F/R） | 8-18/13.6-24 R-1T, other size optional | |
| Wheel Base (mm) | 1845 | |
| Ballast Weight Front/Rear（kg） | 108/90 | |
| Min Operation Weight（kg） | 2250(Cabin) | |
