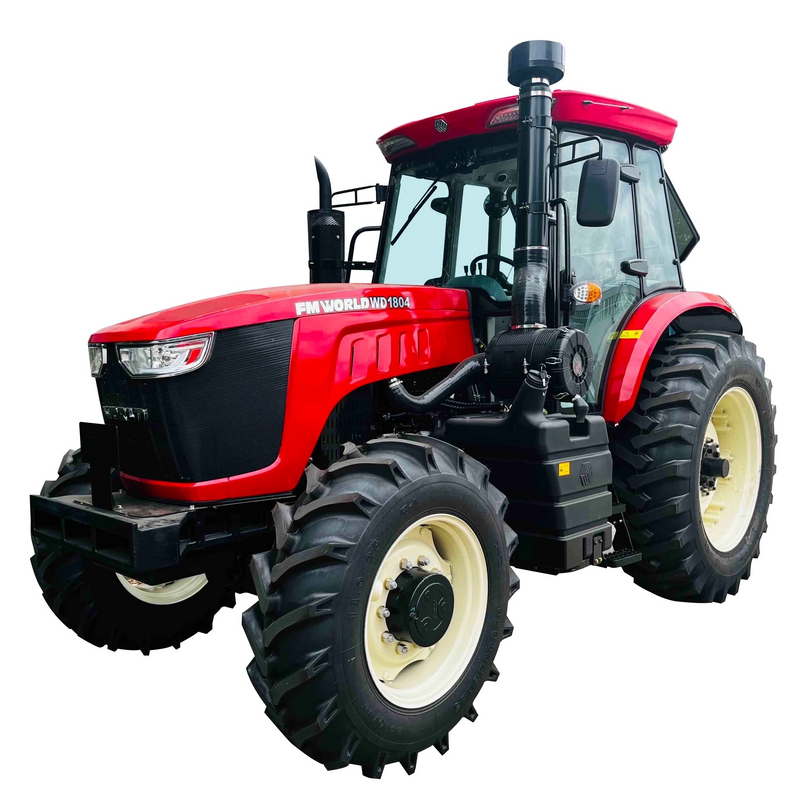

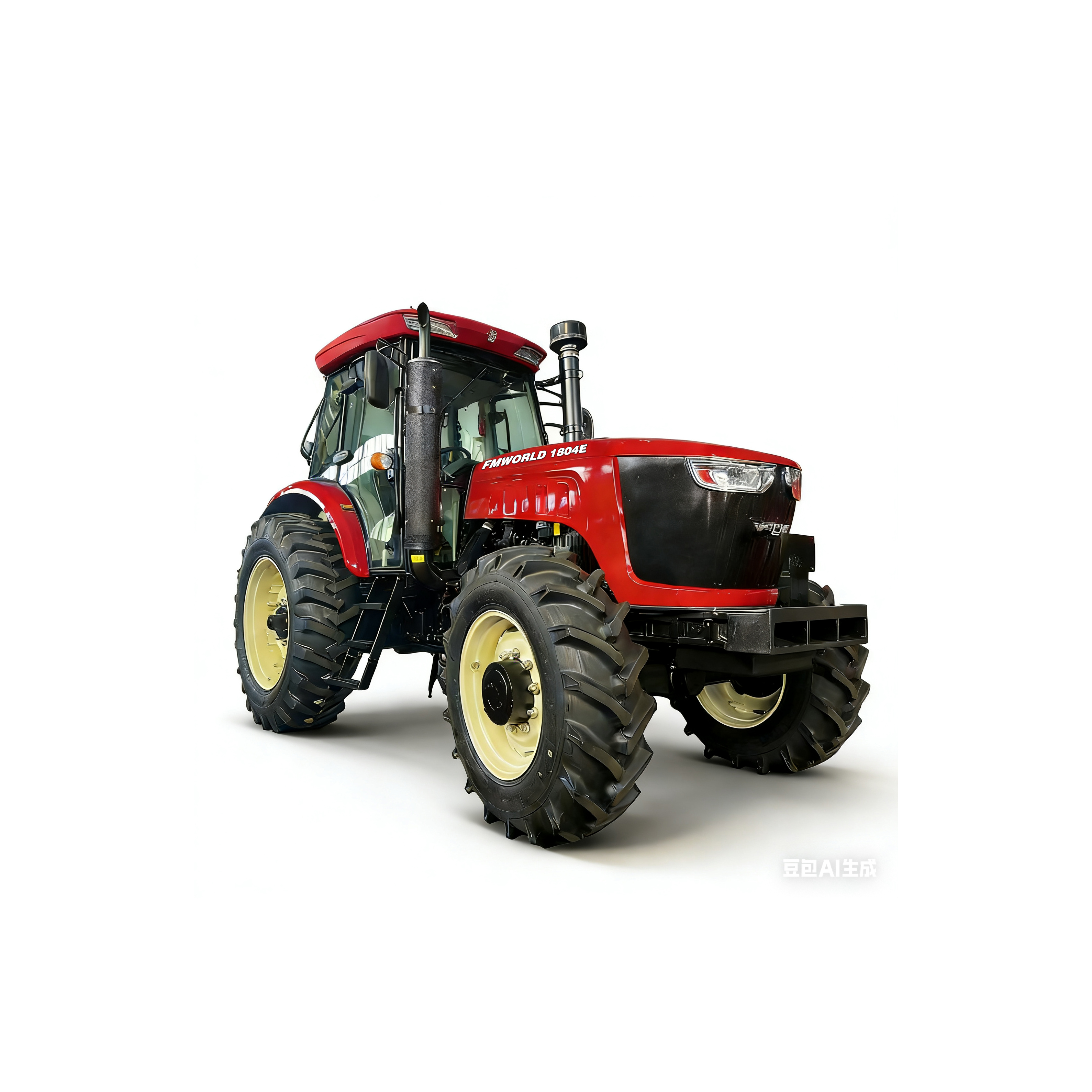

E Series (1804E)
FMWORLD
| Quantity: | |
|---|---|
| Modle | WD1804E | |
| Structure | 4*4 | |
| Engine | Engine Power@speed（HP） | 180@2300 |
| Engine Type | 6 Cylinder, Inline, Vertical, Water-cooled, diesel engine | |
| Fuel Tank Capacity(L) | 300 | |
| Battery | 12V | |
| Air Cleaner | Dry | |
| Transmission | Gears | 24F + 8R with Creeper |
| Clutch | Dual Clutch, Independent | |
| Brake | Mechanical disc | |
| Differential Lock | Pin Type, Mechanical | |
| PTO System | Direction of turning | Clockwise,viewed from tractor rear |
| Diameter of PTO Shaft(mm) | 48 | |
| PTO Speeds（rpm） | 760/850 | |
| Hydraulic system | Type | Category Ⅲ & 3 point hitch |
| Control System | Position ,draft | |
| Lifting Capacity(KG) | ≧4765 | |
| Other Parameters | Steering | Hydraulic Power Steering |
| Dimension(mm)@Cabin | 5220*2300*2940 | |
| Gorund Clearance(mm) | 470 | |
| Tires（F/R） | 14.9-26/18.4-38 R-1, other size optional | |
| Wheel Base (mm) | 2720 | |
| Ballast Weight Front/Rear（kg） | 600/540 | |
| Min Operation Weight（kg） | 5700 | |
