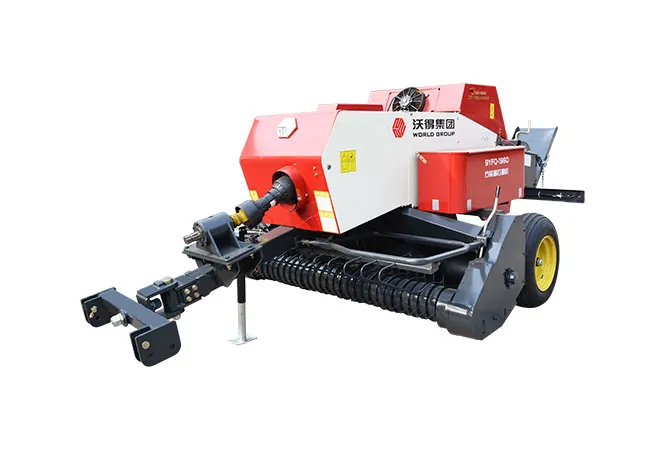

The machine consists of feeding system, pickup system, compact system, baling system, density control system.
The machine suitable for nature grass, planting hay, wheat straw, rice, work with function of integrity of pickup, feeding, compaction, baling etc.
Parameters：
| Model | S Baler | ||||
| Product Name | S Baler | ||||
| Overall size L*W*H(operation) | 4700*2600*1790 mm | ||||
| Weight | 1500 kg | ||||
| Matched power | 50-72 HP | ||||
| Rotating speed | 540 r/min | ||||
| Picker Hey picking width | 1960 mm | ||||
| Picking return dia | 215 mm | ||||
| Picking cylinder rotation speed | 100 r/min | ||||
| Picking finger number | 56 | ||||
| Picking finger spaceing | 66 mm | ||||
| Feeding system Feeding type | Crankshaft type | ||||
| Pressing system Pressing type | Crank shaft,connection rod and piston type | ||||
| Pressing frequency | 100 times/min | ||||
| Piston stroke | 550 mm | ||||
| Press chanber size(W*H) | 450*360 mm | ||||
| Hay baler length | 305-1320 mm | ||||
