What do you know about cotton harvester?

Views: 58     Author: Site Editor     Publish Time: 2022-08-15      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

When the cotton harvester picks cotton, first carry the battery, tie the cotton bales tightly, then connect the rear end of the 50 cm long round tube of the cotton harvester into the cotton bales, and the front end has a multi-directional cotton picking head. And the dual function of importing seed cotton into the cotton bale, for field operations, just turn on the power switch and aim at the bolls, and the whole process of picking and importing cotton is automatically completed.


What is the workflow of cotton harvester?

How does the cotton harvester work?

What are the components of cotton harvester?


What is the workflow of cotton harvester?

When the cotton harvester is operating, the guide device guides the cotton plants into the picking room composed of the grille and the pressure regulating plate. As the cotton harvester moves forward, the width of the cotton plants is squeezed to 80-90mm, and the rotating spindles are regularly picked. Extend the grid plate, insert it horizontally and vertically into the extruded cotton plant, meet the cotton bolls, and the hook teeth on the picking spindles hang the seed cotton, pull out the cotton buds from the cracked cotton bolls, and wrap them around the picking spindles. At the same time, with the rotation of the drum, the picking spindle exits from the picking room through the grid plate and enters the doffering area, and the high-speed rotating doffer disk removes the seed cotton on the picking spindle in reverse. The removed seed cotton is transported to the cotton box by the airflow from the cotton collecting room through the cotton conveying pipeline.


How does the cotton harvester work?

Working principle of cotton harvester:

When picking cotton in the cotton harvester, first carry the battery, tie the cotton bales tightly, and then connect the rear end of the 50cm-long round tube of the cotton harvester into the cotton bales. The front end of the cotton harvester has a multi-directional cotton picking head. It has the dual functions of picking cotton and introducing seed cotton into the cotton bale. For field operations, just turn on the power switch and aim at the bolls, and the whole process of picking and importing cotton is automatically completed. The cotton harvester uses a rotating toothed spindle to take out the seeded fibers in the blooming bolls and send them into the cotton box by air flow.


What are the components of cotton harvester?

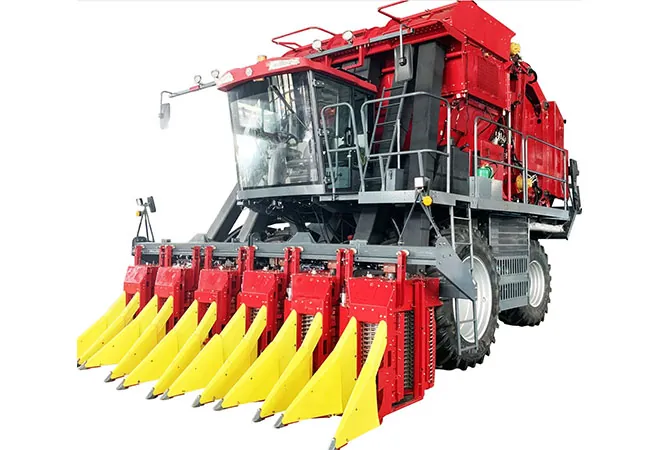

The cotton picking work of the self-propelled cotton harvester is completed by the cotton picking monomer. The cotton picking monomer structure mainly includes two sets of horizontal spindle picking drums (arranged in front and back), picking room, doffing disc, pressing plate, Cotton collection room, guide grid, shower, transmission system, etc. The horizontal spindle picking drum mainly includes spindle picking seat tube, water brush, rinsing device, spindle picking bevel gear, drum shaft, crank, roller, guide groove, transmission sprocket, spindle driving gear, seat tube shaft driving gear, Picking spindle seat tube shaft, seat tube shaft bevel gear, spindle picking, etc.


FM World Agricultural Machinery has an excellent supply chain management due to its mother group - the world group, one of the top 500 enterprises of China, has tremendous capital and 21 subsidiaries in manufacturing sections. It allows us to produce 80% spare parts of our machines by ourselves.
