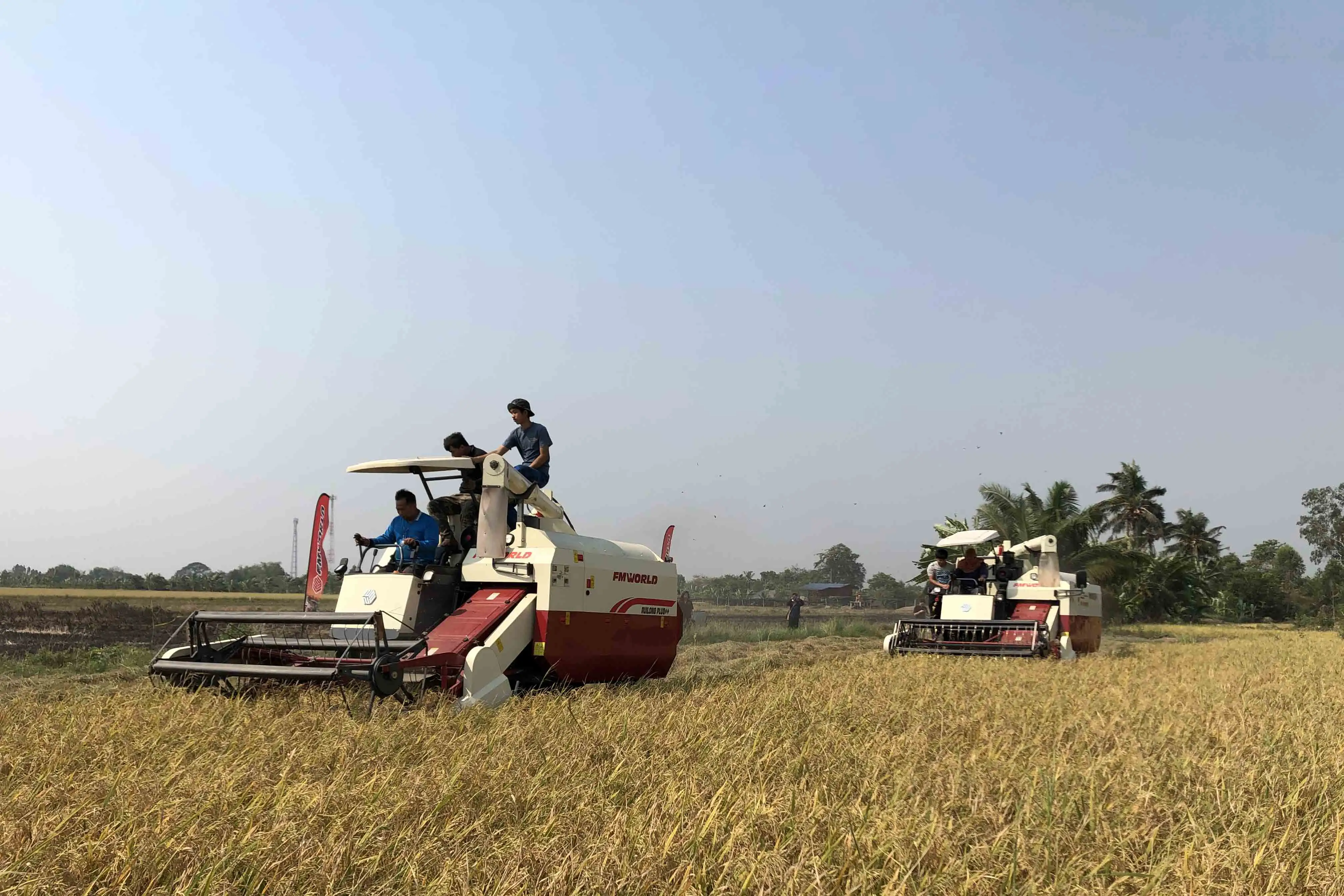

Ruilong Plus 4LZ-6.0P (GT)
FMWORLD
| Quantity: | |
|---|---|
Specification
| Model | 4LZ-6.0P(big grain tank) | |||
| Type | Self-propelled Whole-feeding | |||
| Dimension (Operation) | Length（mm） | 4960 | ||
| Width（mm） | 2890 | |||
| Height（mm） | 2700 | |||
| Weight（kg） | 3100 | |||
| Engine | Model | Changchai 4L88 | ||
| Power（HP） | 102 | |||
| RPM（r/min） | 2600 | |||
| Fuel Capacity（L） | 130 | |||
| Gearbox | Hydraulic Gearbox Box ZKB85 | |||
| HST | 45cc | |||
| Chassis | Track(mm) | 550*90*56 | ||
| Track Center(mm) | 1150 | |||
| Ground Clearance(mm) | 320 | |||
| Harvesting | Cutting Width(mm) | 2000 | ||
| Feeding Capacity (kg/s) | 6.0 | |||
| Cutting Bar Lift | Hydraulic Control | |||
| Threshing | Type | Axial Flow Type with Beat Bars | ||
| Threshing Cylinder (mm) | 620*2000 | |||
| Filtrate Type | Vibrating Sieves+ Centrifugal Fan | |||
| Discharging | Grain Tank Type | Manual type | ||
| Grain Tank | 0.3m³ | |||
| Work efficiency(acre/h) | 0.37-0.66 | |||
| Crops | Rice, Wheat, Rapeseed, Soybean | |||
