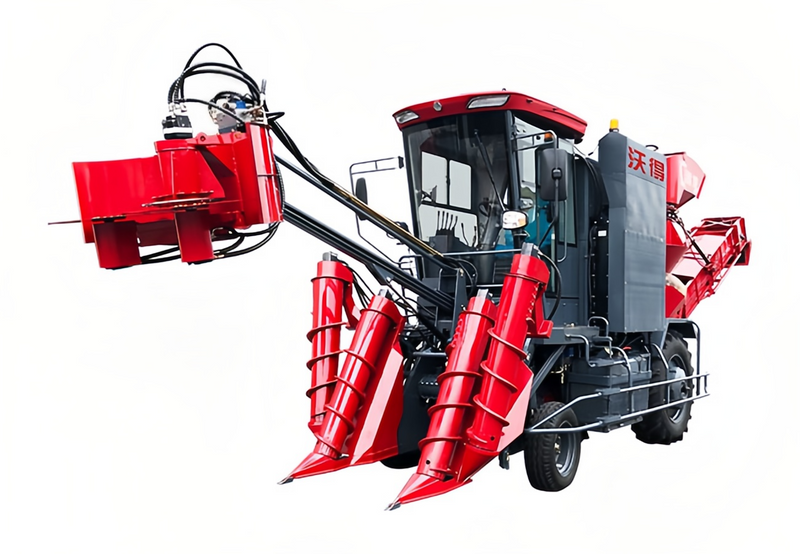

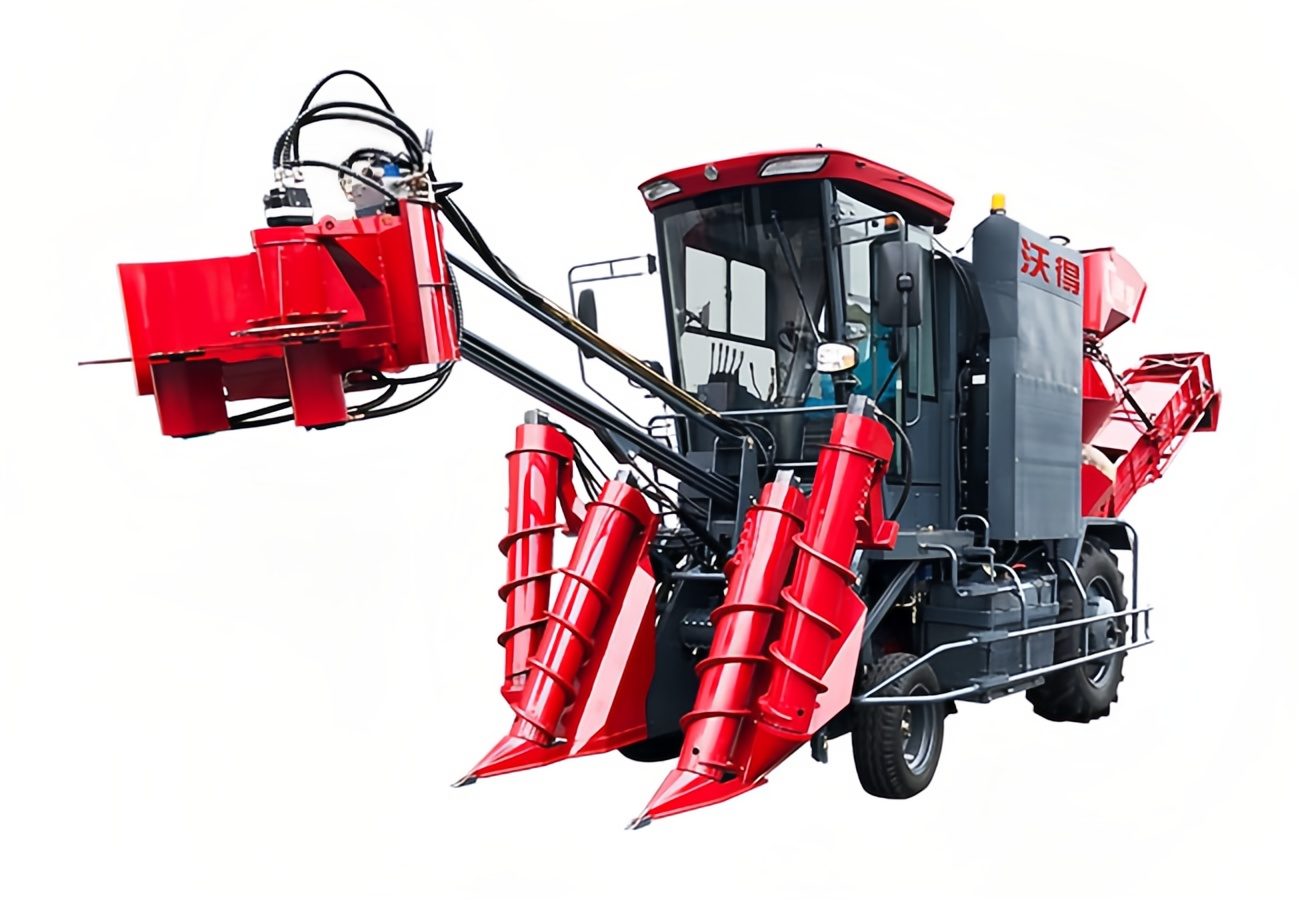

4GD-1
FMWORLD
Availability: | |
---|---|
Quantity: | |
Parameters:
Model | 4GD-1 | ||||||||||
Structural pattern | Rubber track self-propelled | ||||||||||
Rubber track | 400*90*53 | ||||||||||
Harvest rows | 1 | ||||||||||
Adaptive row spacing (m) | ≥1.0 | ||||||||||
Engine model | 4G33TC | ||||||||||
Engine rated power(kw) | 75 | ||||||||||
Engine rated RPM (r/min) | 2600 | ||||||||||
Dimensions (mm) | 6165*2010*3300 | ||||||||||
Transmission mode | Hydraulic | ||||||||||
Walking speed (km/h) | 9 | ||||||||||
Working efficiency (h㎡/h) | 0.21 | ||||||||||
Weight (kg) | 3640 | ||||||||||
Ground clearance (mm) | 330 | ||||||||||
Cabin type | AC Cabin | ||||||||||
Cutting device type | Double disc cutter | ||||||||||
Cutting device transmission mode | Hydraulic | ||||||||||
Clamping device type | Conveyor chain | ||||||||||
Clamping device transmission mode | Hydraulic | ||||||||||
Cane holding device type | Finger plate | ||||||||||
Driving mode of cane holding device | Hydraulic | ||||||||||
Cane collecting (unloading) device | Collecting hopper | ||||||||||
Rated stacking capacity (kg) | 500 | ||||||||||
Parameters:
Model | 4GD-1 | ||||||||||
Structural pattern | Rubber track self-propelled | ||||||||||
Rubber track | 400*90*53 | ||||||||||
Harvest rows | 1 | ||||||||||
Adaptive row spacing (m) | ≥1.0 | ||||||||||
Engine model | 4G33TC | ||||||||||
Engine rated power(kw) | 75 | ||||||||||
Engine rated RPM (r/min) | 2600 | ||||||||||
Dimensions (mm) | 6165*2010*3300 | ||||||||||
Transmission mode | Hydraulic | ||||||||||
Walking speed (km/h) | 9 | ||||||||||
Working efficiency (h㎡/h) | 0.21 | ||||||||||
Weight (kg) | 3640 | ||||||||||
Ground clearance (mm) | 330 | ||||||||||
Cabin type | AC Cabin | ||||||||||
Cutting device type | Double disc cutter | ||||||||||
Cutting device transmission mode | Hydraulic | ||||||||||
Clamping device type | Conveyor chain | ||||||||||
Clamping device transmission mode | Hydraulic | ||||||||||
Cane holding device type | Finger plate | ||||||||||
Driving mode of cane holding device | Hydraulic | ||||||||||
Cane collecting (unloading) device | Collecting hopper | ||||||||||
Rated stacking capacity (kg) | 500 | ||||||||||
