FMWORLD Feilong Plus - Cabin

Feilong Series includes Feilong and Feilong Plus. Feilong Series double thresher rubber track combine harvesters are independently researched and developed by FMWORLD Agricultural Machinery. Double threshers bring less grain loss and improve cleanliness.
  • Feilong Plus 4LZ-5.0D (Cabin)

  • FMWORLD

Availability:
Quantity:

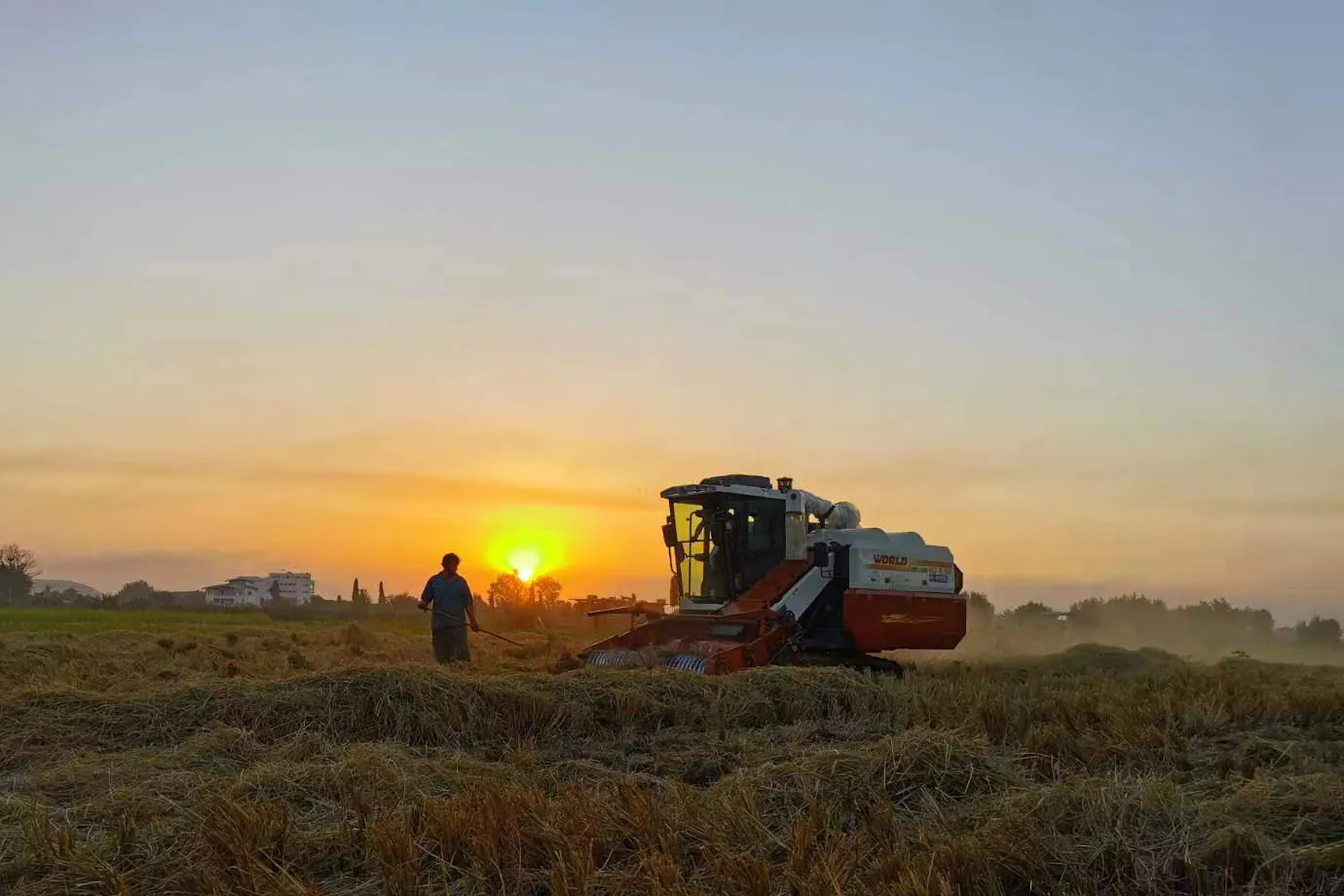

飞龙Plus驾驶室场景图


Client

飞龙Plus-驾驶室 32


Specification

Model RUILONG PLUS 4LZ-5.0D Cabin
Type Self-propelled Whole-feeding
Dimension             (Operation) Length(mm) 5390
Width(mm) 3050
Height(mm) 2920
Weight(kg) 4000
Engine Type In-line, Water cool, Four-stroke, Direct Injection
Power(HP) 110
RPM(r/min) 2600
Fuel Capacity(L) 160
Gearbox Hydraulic Gearbox Box ZKB85
HST 45cc
Chassis Track(mm) 550*90*53
Track Gauge(mm) 1320
Ground Clearance(mm) 290
Harvesting Cutting Width(mm) 2360
Feeding Capacity (kg/s) 5.0
Cutting Bar Lift Hydraulic Control
Threshing Type Axial Flow Type with Beat Bars
Feeding Cylinder (mm) 650*950
Threshing Cylinder (mm) 550*1260
Filtrate Type Vibrating Sieves+ Centrifugal Fan
Discharging Grain Tank Type 360° Rotaty Unloading
Grain Tank Capacity (m³) 1.47
Work efficiency(ha./h) 0.4-0.7
Crops Rice, Wheat, Soybeans,Rapeseed
