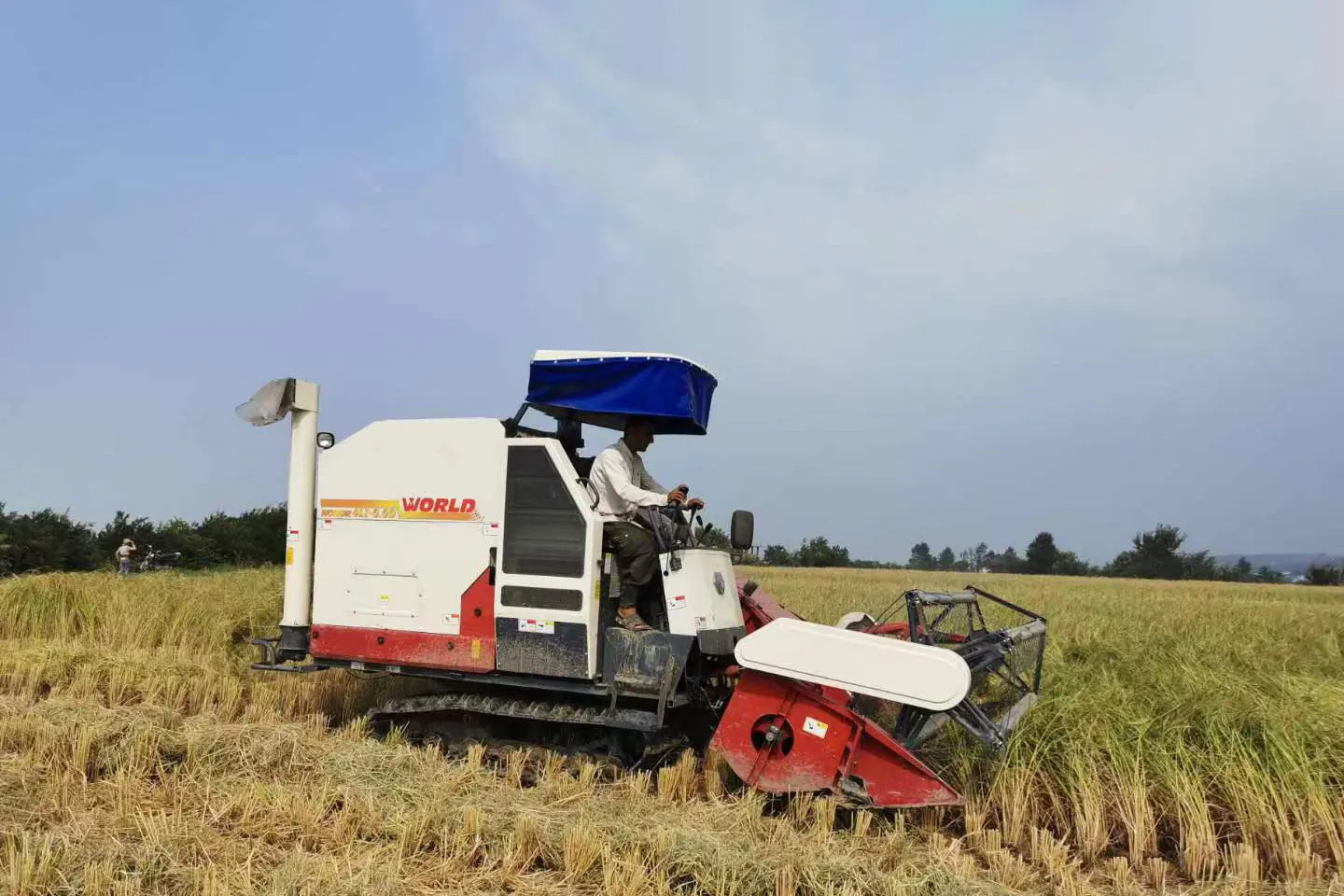

Feilong Plus 4LZ-5.0D (Grain Tank)
FMWORLD
| Quantity: | |
|---|---|
Client
Specification
| Model | RUILONG PLUS 4LZ-5.0D (Grain Tank) | ||||
| Type | Self-propelled Whole-feeding | ||||
| Dimension (Operation) | Length（mm） | 5390 | |||
| Width（mm） | 3050 | ||||
| Height（mm） | 2920 | ||||
| Weight（kg） | 3700 | ||||
| Engine | Type | In-line, Water cool, Four-stroke, Direct Injection | |||
| Power（HP） | 110 | ||||
| RPM（r/min） | 2600 | ||||
| Fuel Capacity（L） | 160 | ||||
| Gearbox | Hydraulic Gearbox Box ZKB85 | ||||
| HST | 45cc | ||||
| Chassis | Track(mm) | 550*90*53 | |||
| Track Gauge(mm) | 1320 | ||||
| Ground Clearance(mm) | 290 | ||||
| Harvesting | Cutting Width(mm) | 2360 | |||
| Feeding Capacity (kg/s) | 5.0 | ||||
| Cutting Bar Lift | Hydraulic Control | ||||
| Threshing | Type | Axial Flow Type with Beat Bars | |||
| Feeding Cylinder (mm) | 650*950 | ||||
| Threshing Cylinder (mm) | 550*1260 | ||||
| Filtrate Type | Vibrating Sieves+ Centrifugal Fan | ||||
| Discharging | Grain Tank Type | Vertical Unloading | |||
| Grain Tank Capacity （m³） | 1.47 | ||||
| Work efficiency（ha./h) | 0.4-0.7 | ||||
| Crops | Rice, Wheat, Soybeans，Rapeseed | ||||
