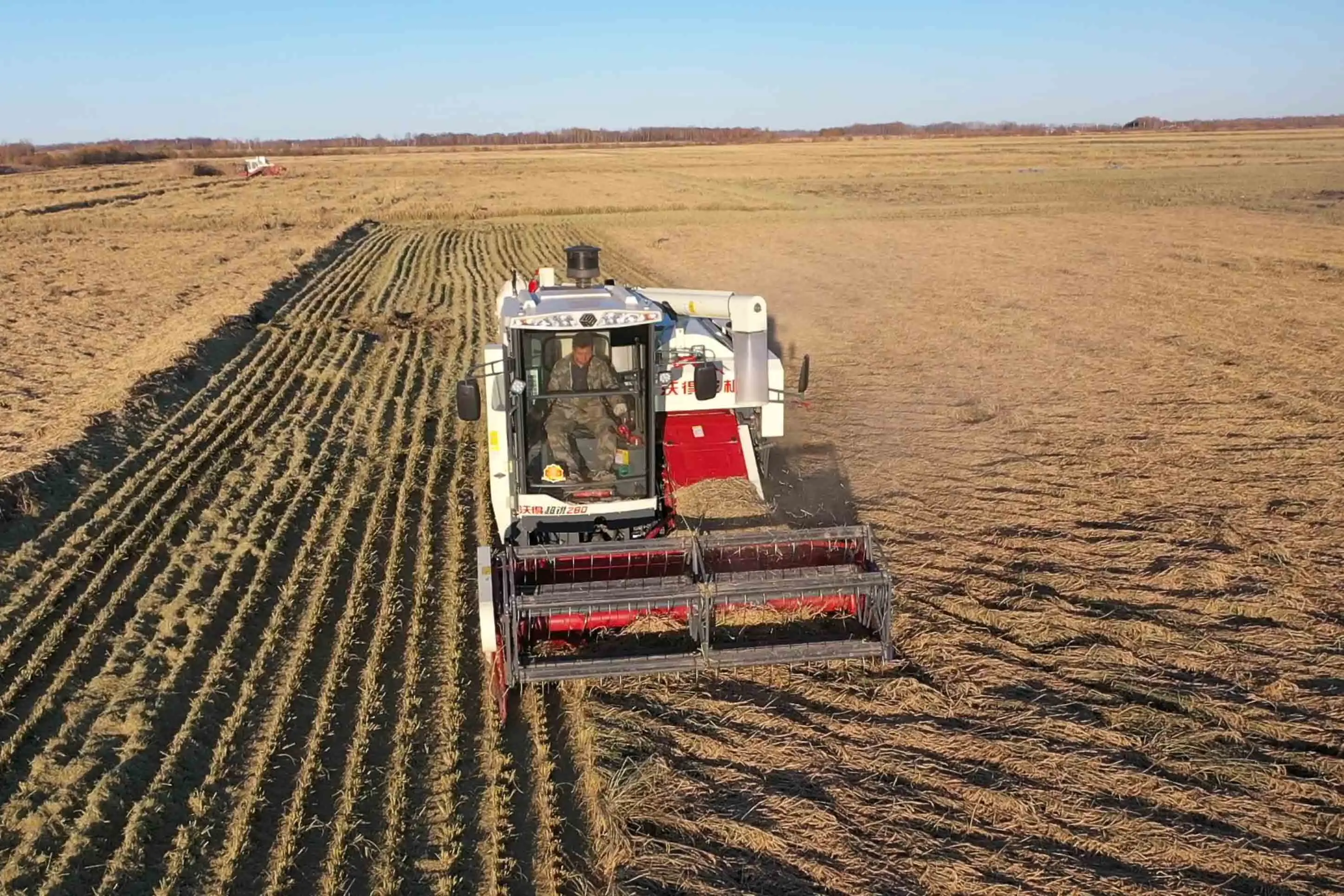

Ruilong Max 4LZ-8.0
FMWORLD
| Quantity: | |
|---|---|
Specification
| Model | RUILONG MAX 4LZ-8.0 with AC Cabin |
| Basic Configuration | |
| Feeding Capacity | 8 KG/S |
| Weight | 4500 KGS |
| Working Dimension L*W*H | 6200*3170*3080 mm |
| Harvesting Effect | |
| Work Efficiency | 0.5-2.8 Hactares/Hour |
| Grain Loss rate | Less than 1% |
| Grain Breakage | Less than 1% |
| Impurity | Less than 1% |
| Power | |
| Engine | Yuchai YCD140 (150HP/2600rpm) |
| Fuel Capacity | 200L |
| Emmision Pipe | The Upper Type |
| Transmission & HST | |
| Transmission Type | Transmission ZKB90 |
| HST | 56CC |
| Chassis | |
| Min. Ground Clearance | 320mm |
| Rubber Track | 550mm*90 mm*60 |
| Header & Conveyor | |
| Cut Width | 2800mm |
| Reel Control | Hydraulic |
| Conveyor | Width 600mm |
| Conveyor Transmission | Rotate forward and reverse |
| Thresher& Separating Unit | |
| Threshing Type | Axial Flow, Beat Bar |
| Thresher Rotor | ∮700*2520mm |
| Separating Unit | Adjustable Air Blow |
| Grain Tank | |
| Grain Tank Capacity | 2.1 m3 |
| Grain Unloading Type | 360 Automatic Grain Unloading Pipe |
| Crops to Harvest | Rice ,Wheat ,Rapeseed, Soybean, Corn |
