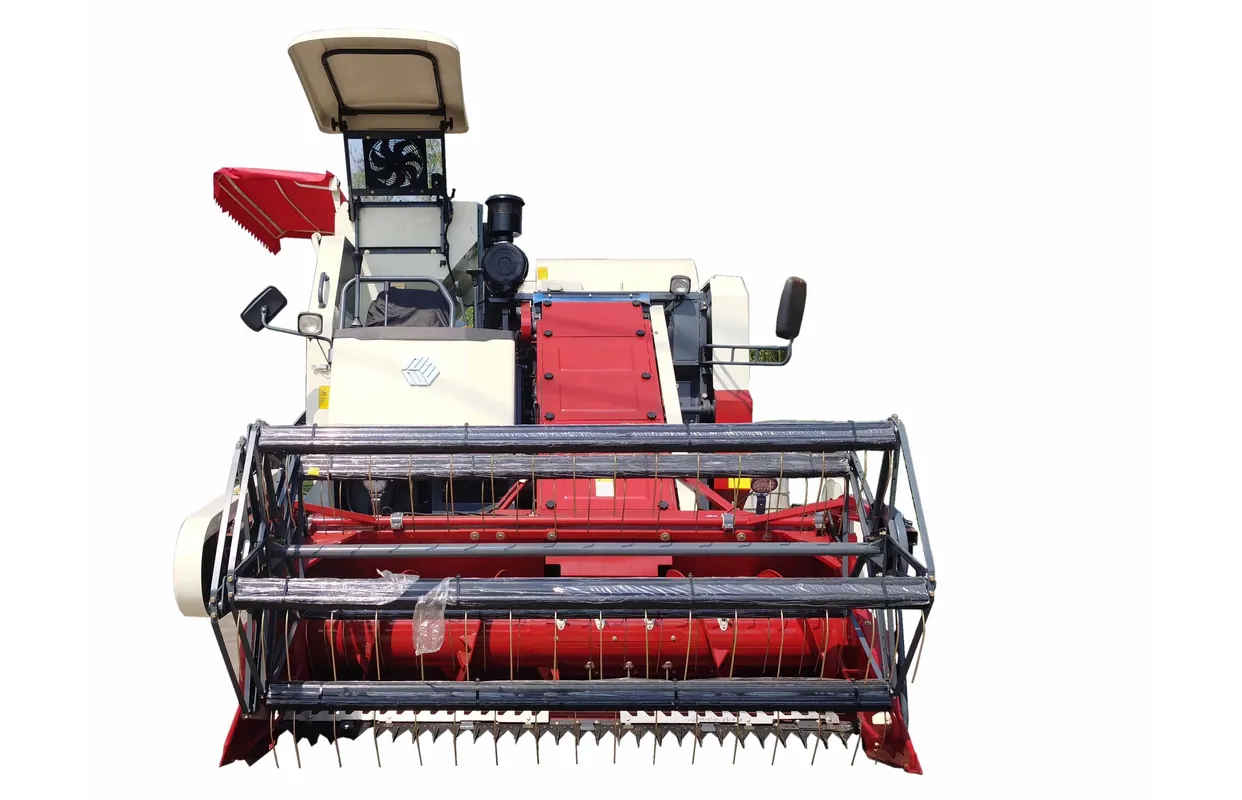

Feilong Plus 4LZ-5.0B (Sack Type)
FMWORLD
| Quantity: | |
|---|---|
Specification
| Model | FEILONG PLUS 4LZ-5.0B(Sack Type) | |
| Type | Self-propelled Whole-feeding | |
| Dimension (Operation) | Length（mm） | 5260 |
| Width（mm） | 2790 | |
| Height（mm） | 3100 | |
| Weight（kg） | 3520@Canopy | |
| Engine | No. and Model | 4G33-TC |
| Type | In-line, Water cool, Four-stroke, Direct Injection | |
| Power（HP） | 102 | |
| RPM（r/min） | 2600 | |
| Fuel Capacity（L） | 130 | |
| Gearbox | Hydraulic Gear BoxZKB85 | |
| HST | 45cc | |
| Chassis | Track(mm) | 550*90*56 |
| Track Gauge(mm) | 1320 | |
| Ground Clearance(mm) | 290 | |
| Harvesting | Cutting Width(mm) | 2360 |
| Feeding Capacity (kg/s) | 5 | |
| Cutting Bar Lift | Hydraulic Control | |
| Threshing | Type | Axial Flow Type with Beat Bars |
| Feeding Cylinder (mm) | 650*950 | |
| Threshing Cylinder (mm) | 550*1260 | |
| Filtrate Type | Vibrating Sieves+ Centrifugal Fan | |
| Discharging | Grain Unloading | Sack |
| Grain Tank Capacity （m³） | 0.4 | |
| Work efficiency（ha./h) | 0.4-0.7 | |
| Crops | Rice, Wheat, Soybeans, Rapeseed | |
